| Quantity: | |
|---|---|
Product Parameters
| Standard | ASTM, DIN, API, GB,ANSI,EN |
| Standard2 | ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 |
| Grade Group | A53-A369, 16Mn, Q195-Q345, 10#-45#,X42,X46,X52,X56,X60,X65,X70 |
| Grade | A53(A,B), 16Mn, Q235, Q345, Q195, Q215, 10#, 20#, 45# |
| Section Shape | Round |
| Place of Origin | China |
| Technique | Hot Rolled |
| Certification | API |
| Special Pipe | API Pipe |
| Alloy Or Not | Non-alloy |
| Application | Water, Gas, Oil transportation seamless steel line pipe |
| Surface Treatment | Black painting or 3pe,3pp,fbe anti-corrosion coated |
| Thickness | 2.5 - 80 mm |
| Outer Diameter(Round) | 25- 1020mm |
| Product name | Anti-corrosion pipeline |
| Keywords | pipeline |
| OEM | accept |
| Visit factory | welcomed |
| Section shape | round |
| Length | 5.8-12m |
| Brand Name | JJN Steel |
| W.T.≤25.0mm(0.984in)API 5L PSL2 Pipe line Chemical Composition(%) | ||||||||||
| Grade | C | Si | Mn | P | S | V | Nb | TI | CEIIW | CEPcm |
| BR | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42R | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| BN | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42N | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46N | ≤0.024 | ≤0.4 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | a | a |
| BQ | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X42Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X65Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X70Q | ≤0.018 | ≤0.45 | ≤1.8 | ≤0.025 | ≤0.015 | a | a | a | a | a |
| a: according to API standard or requirements | ||||||||||
| API 5L PSL2 Pipe line Mechanical properties | ||||
| Grade | Yield strength Rt0,5 Mpa(psi) | Tensile strength Rm Mpa(psi) | Rt0,5/Rm | Elongation 50mm or 2in |
| BR/BN/BQ | 245(35500)-450(65300) | 415(60200)-655(95000) | ≤0.93 | Af |
| X42R/X42N/X42Q | 290(42100)-495(71800) | ≥415(60200) | ≤0.93 | Af |
| X46N/X46Q | 320(46400)-525(76100) | 435(63100)-655(95000) | ≤0.93 | Af |
| X52N/X52Q | 360(52200)-530(76900) | 460(66700)-760(110200) | ≤0.93 | Af |
| X56N/X56Q | 390(56600)-545(79000) | 490(71100)-760(110200) | ≤0.93 | Af |
| X60N/X60Q | 415(60200)-565(81900) | 520(75400)-760(110200) | ≤0.93 | Af |
| X65Q | 450(65300)-600(87000) | 535(77600)-760(110200) | ≤0.93 | Af |
| X70Q | 485(70300)-635(92100) | 570(82700)-760(110200) | ≤0.93 | Af |
Product Advantages
High Quality:
Manufactured according to API 5L PSL2 standards, ensuring consistency, reliability, and superior performance.
Made with premium materials, ensuring durability and excellent mechanical properties.
High Withstand Voltage:
Capable of enduring high voltage and extreme conditions, making it suitable for demanding applications.
Ideal for industries that require strength and resilience under electrical stress.
Corrosion Resistance:
The anti-corrosive painting provides an additional protective layer, extending the lifespan of the pipes in harsh environments.
Resistant to various forms of corrosion, including rust and chemical degradation, ensuring long-term reliability.

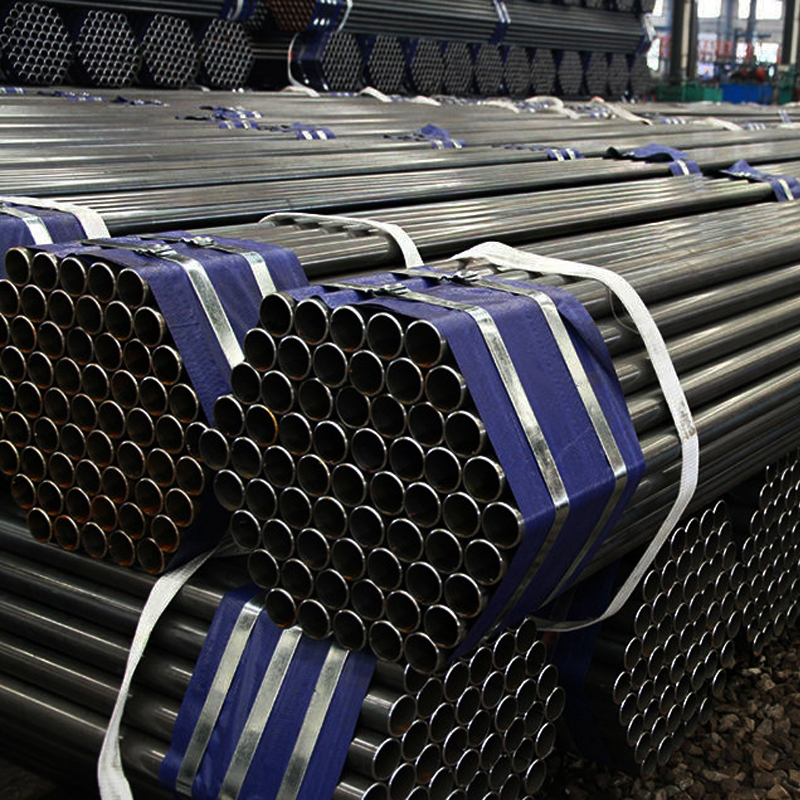

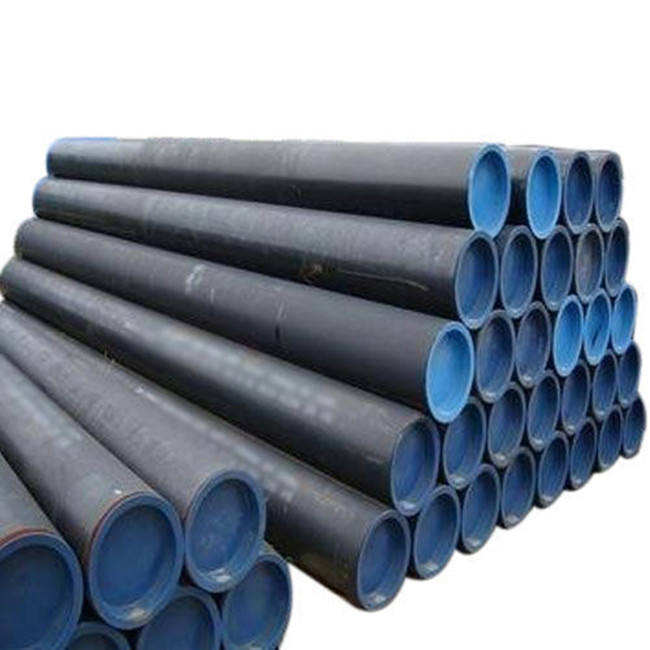

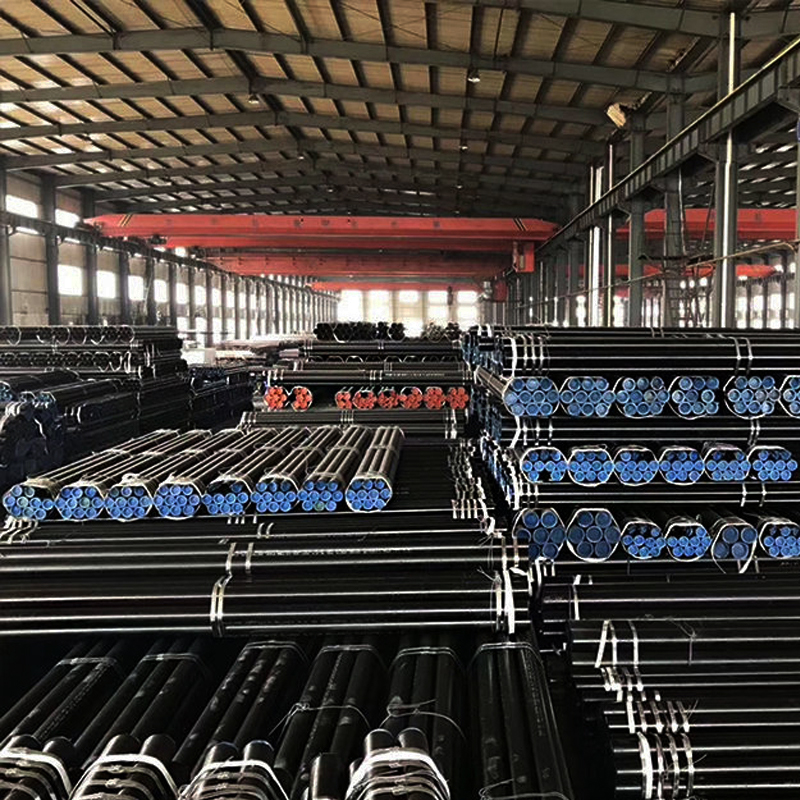

Product Display
Applications of Our Product
Pipeline Transportation in the Petroleum and Natural Gas Industries:
Used as a line pipe in pipeline systems for transporting petroleum and natural gas, ensuring safe and efficient fluid transfer over long distances. Its robust design and anti-corrosive coating make it ideal for harsh environmental conditions.
Casing and Tubing for Wells:
Suitable for use as casing and tubing in drilling operations, providing structural integrity and resistance to high pressures and temperatures. This ensures reliable performance in deep-well and oilfield applications.
Screwed and Socketed Steel Tubes:
Ideal for applications requiring screwed or socketed connections, such as construction or repair work. This versatile product can be used in tubular frameworks or as plain-end steel tubes for various industrial uses.
Welding and Screwing for BS21 Pipe Threads:
Perfect for applications that require welding or screwing to BS21 pipe threads. This includes loose steel tubes, scaffolding, and other construction-related uses, providing flexibility and ease of installation.
Conveyance of Fluids and Structural Applications:
Used for transporting fluids (water, oil, gas, etc.) in a variety of systems. It is also utilized in pipe piles where the steel cylinder serves as a permanent load-carrying element or as a shell for cast-in-place concrete piles, offering significant strength and stability.
Construction of Bridges, Buildings, and Structural Uses:
Essential in the welded, riveted, or bolted construction of bridges, buildings, and general structural purposes. Its durability and resistance to stress and corrosion make it a top choice for heavy-duty construction projects.
Packaging & Shipping
FAQs
1. What industries can benefit from using API 5L PSL2 Thick Wall Seamless Steel Pipes?
These steel pipes are primarily used in the petroleum and natural gas industries for pipeline transportation systems. They are also suitable for other industries requiring high-quality piping for fluid conveyance, structural applications, and pressure purposes, such as construction, oil drilling, and infrastructure projects.
2. Can these pipes be used for high-pressure applications?
Yes, these pipes are designed to handle high-pressure environments. They are suitable for applications with nominal pressure ratings of 25 for liquids and 10 for air and non-hazardous gases, ensuring reliable performance under pressure.
3. What are the advantages of the anti-corrosive coating on these steel pipes?
The anti-corrosive coating provides a protective layer that enhances the durability and longevity of the pipes. It ensures resistance to rust, chemical degradation, and general corrosion, making them ideal for harsh environments such as marine, underground, and other corrosive settings.
4. Can these pipes be welded or screwed into place?
Yes, the API 5L PSL2 steel pipes are suitable for both welding and screwing to BS21 pipe threads. This versatility allows them to be used in various applications, including scaffolding, structural frameworks, and connecting components in industrial systems.
5. Are these pipes suitable for structural and foundation purposes?
Yes, these pipes are used in the construction of bridges, buildings, and other structures. They are also employed in pipe piles, where the steel cylinder acts as a permanent load-bearing member or shell for cast-in-place concrete piles, providing strength and stability in foundation applications.
