Anti-corrosion Pipeline
Steel pipeline is used to transport the oil, gas and water drawn out of the ground to the oil and natural gas industry enterprises through the pipeline. The pipeline includes seamless pipe and welded steel pipe, with plain end,beveled end, threaded end and socket end; API 5L seamless steel pipe steel grades: gr.b, X42, X46, 52, X56, X60, X65, X70,etc. Its connection modes are welding, coupling connection, socket connection, etc
Product Paramenters
| Standard | ASTM, DIN, API, GB,ANSI,EN |
| Standard2 | ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 |
| Grade Group | A53-A369, 16Mn, Q195-Q345, 10#-45#,X42,X46,X52,X56,X60,X65,X70 |
| Grade | A53(A,B), 16Mn, Q235, Q345, Q195, Q215, 10#, 20#, 45# |
| Section Shape | Round |
| Place of Origin | China |
| Technique | Hot Rolled |
| Certification | API |
| Special Pipe | API Pipe |
| Alloy Or Not | Non-alloy |
| Application | Water, Gas, Oil transportation seamless steel line pipe |
| Surface Treatment | Black painting or 3pe,3pp,fbe anti-corrosion coated |
| Thickness | 2.5 - 80 mm |
| Outer Diameter(Round) | 25- 1020mm |
| Product name | Anti-corrosion pipeline |
| Keywords | pipeline |
| OEM | accept |
| Visit factory | welcomed |
| Section shape | round |
| Length | 5.8-12m |
| Brand Name | JJN Steel |
| Usage | underground water,gas,oil supply steel line pipe |
| W.T.≤25.0mm(0.984in)API 5L PSL2 Pipe line Chemical Composition(%) | ||||||||||
| Grade | C | Si | Mn | P | S | V | Nb | TI | CEIIW | CEPcm |
| BR | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42R | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| BN | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42N | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46N | ≤0.024 | ≤0.4 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | a | a |
| BQ | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X42Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X65Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X70Q | ≤0.018 | ≤0.45 | ≤1.8 | ≤0.025 | ≤0.015 | a | a | a | a | a |
| a: according to API standard or requirements | ||||||||||
| API 5L PSL2 Pipe line Mechanical properties | ||||
| Grade | Yield strength Rt0,5 Mpa(psi) | Tensile strength Rm Mpa(psi) | Rt0,5/Rm | Elongation 50mm or 2in |
| BR/BN/BQ | 245(35500)-450(65300) | 415(60200)-655(95000) | ≤0.93 | Af |
| X42R/X42N/X42Q | 290(42100)-495(71800) | ≥415(60200) | ≤0.93 | Af |
| X46N/X46Q | 320(46400)-525(76100) | 435(63100)-655(95000) | ≤0.93 | Af |
| X52N/X52Q | 360(52200)-530(76900) | 460(66700)-760(110200) | ≤0.93 | Af |
| X56N/X56Q | 390(56600)-545(79000) | 490(71100)-760(110200) | ≤0.93 | Af |
| X60N/X60Q | 415(60200)-565(81900) | 520(75400)-760(110200) | ≤0.93 | Af |
| X65Q | 450(65300)-600(87000) | 535(77600)-760(110200) | ≤0.93 | Af |
| X70Q | 485(70300)-635(92100) | 570(82700)-760(110200) | ≤0.93 | Af |

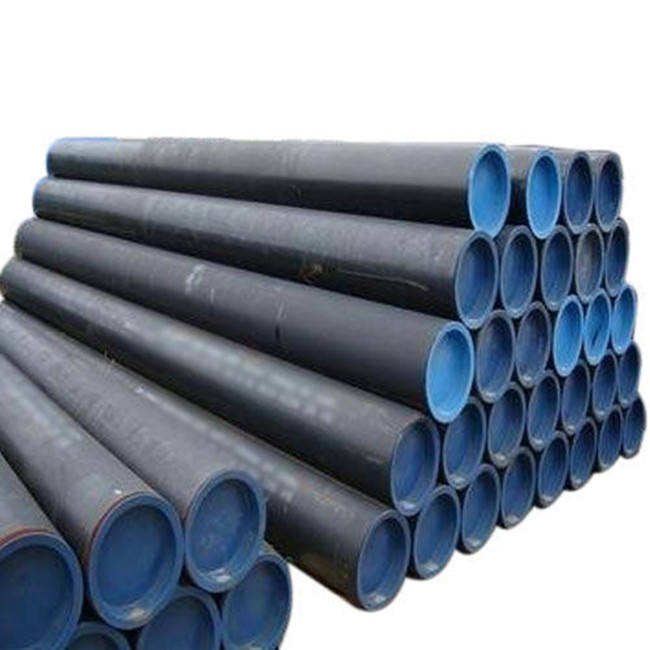

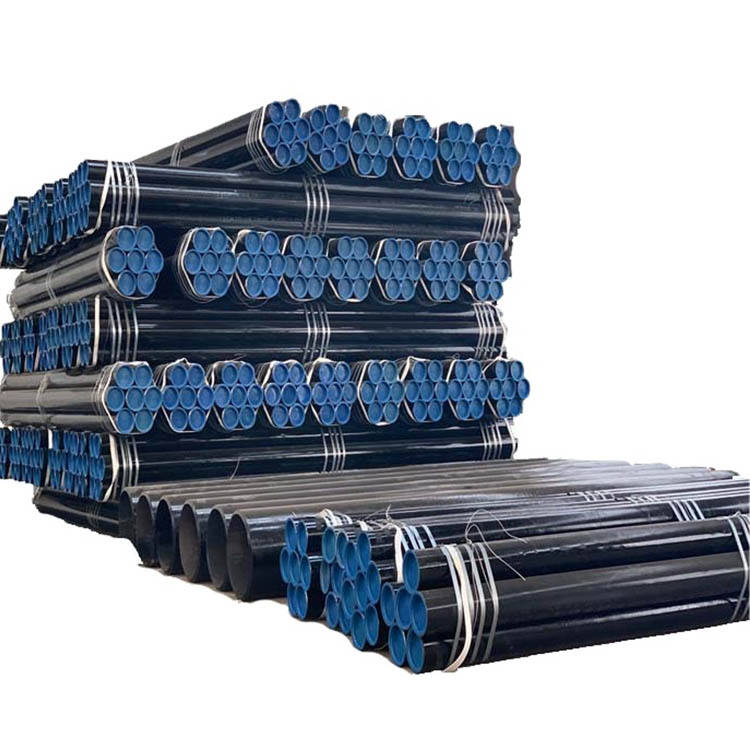

Product Display
Application

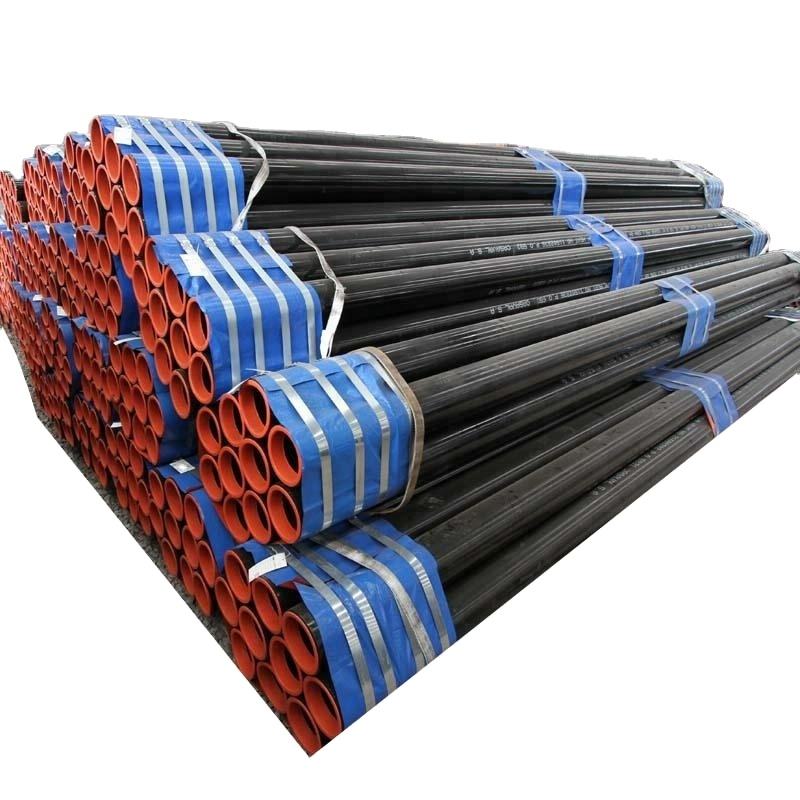

Packaging & Shipping
Company Profile
Shandong Jiajiena Metal Products Co., Ltd. is a comprehensive steel enterprise integrating warehousing, processing, trading and distribution. It has its own processing plant, which can process a series of surface processing, cutting processing, forming, rolling, sandblasting and so on.The company's main products are stainless steel, carbon steel, galvanized products and other coils, plates, and profiles! There is a stock of 20,000 tons of flat panels of various specifications. Own storage and processing 45,000 square meters. It has more than ten processing equipments such as cold-rolled slitting, decoiling proces and surface processing, with an annual processing capacity of 150,000 tons.
FAQ
Q: Are you a manufacturer?
A: Yes.we are a manufacturer.We have own factory.which is located in LIAOCHENG.CHINA.We have a leading power in
producing and exporting steel pipegalvanized steel pipe、hollow section、galvanized hollow section etc.
We promise that we are what you are looking for.
Q:Can we visit your factory?
A:Warmly welcome .once we have your schedule we will pick you up
Q: Do you have quality control?
A: Yes. we have gained BV.SGSauthentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product.such as material.size.shape.etc.So we can give the best offer
