Anti-corrosion Pipeline
Steel pipeline is used to transport the oil, gas and water drawn out of the ground to the oil and natural gas industry enterprises through the pipeline. The pipeline includes seamless pipe and welded steel pipe, with plain end,beveled end, threaded end and socket end; API 5L seamless steel pipe steel grades: gr.b, X42, X46, 52, X56, X60, X65, X70,etc. Its connection modes are welding, coupling connection, socket connection, etc
Product Paramenters
| Standard | ASTM, DIN, API, GB,ANSI,EN |
| Standard2 | ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 |
| Grade Group | A53-A369, 16Mn, Q195-Q345, 10#-45#,X42,X46,X52,X56,X60,X65,X70 |
| Grade | A53(A,B), 16Mn, Q235, Q345, Q195, Q215, 10#, 20#, 45# |
| Section Shape | Round |
| Place of Origin | China |
| Technique | Hot Rolled |
| Certification | API |
| Special Pipe | API Pipe |
| Alloy Or Not | Non-alloy |
| Application | Water, Gas, Oil transportation seamless steel line pipe |
| Surface Treatment | Black painting or 3pe,3pp,fbe anti-corrosion coated |
| Thickness | 2.5 - 80 mm |
| Outer Diameter(Round) | 25- 1020mm |
| Product name | Anti-corrosion pipeline |
| Keywords | pipeline |
| OEM | accept |
| Visit factory | welcomed |
| Section shape | round |
| Length | 5.8-12m |
| Brand Name | JJN Steel |
| Usage | underground water,gas,oil supply steel line pipe |
| W.T.≤25.0mm(0.984in)API 5L PSL2 Pipe line Chemical Composition(%) | ||||||||||
| Grade | C | Si | Mn | P | S | V | Nb | TI | CEIIW | CEPcm |
| BR | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42R | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| BN | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42N | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46N | ≤0.024 | ≤0.4 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | a | a |
| BQ | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X42Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X65Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X70Q | ≤0.018 | ≤0.45 | ≤1.8 | ≤0.025 | ≤0.015 | a | a | a | a | a |
| a: according to API standard or requirements | ||||||||||
| API 5L PSL2 Pipe line Mechanical properties | ||||
| Grade | Yield strength Rt0,5 Mpa(psi) | Tensile strength Rm Mpa(psi) | Rt0,5/Rm | Elongation 50mm or 2in |
| BR/BN/BQ | 245(35500)-450(65300) | 415(60200)-655(95000) | ≤0.93 | Af |
| X42R/X42N/X42Q | 290(42100)-495(71800) | ≥415(60200) | ≤0.93 | Af |
| X46N/X46Q | 320(46400)-525(76100) | 435(63100)-655(95000) | ≤0.93 | Af |
| X52N/X52Q | 360(52200)-530(76900) | 460(66700)-760(110200) | ≤0.93 | Af |
| X56N/X56Q | 390(56600)-545(79000) | 490(71100)-760(110200) | ≤0.93 | Af |
| X60N/X60Q | 415(60200)-565(81900) | 520(75400)-760(110200) | ≤0.93 | Af |
| X65Q | 450(65300)-600(87000) | 535(77600)-760(110200) | ≤0.93 | Af |
| X70Q | 485(70300)-635(92100) | 570(82700)-760(110200) | ≤0.93 | Af |

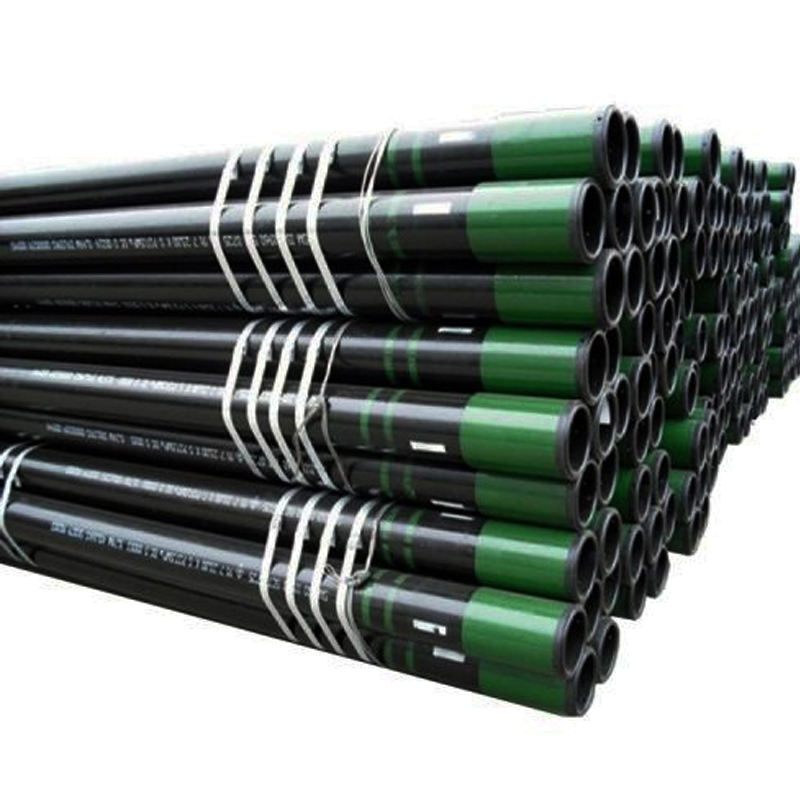

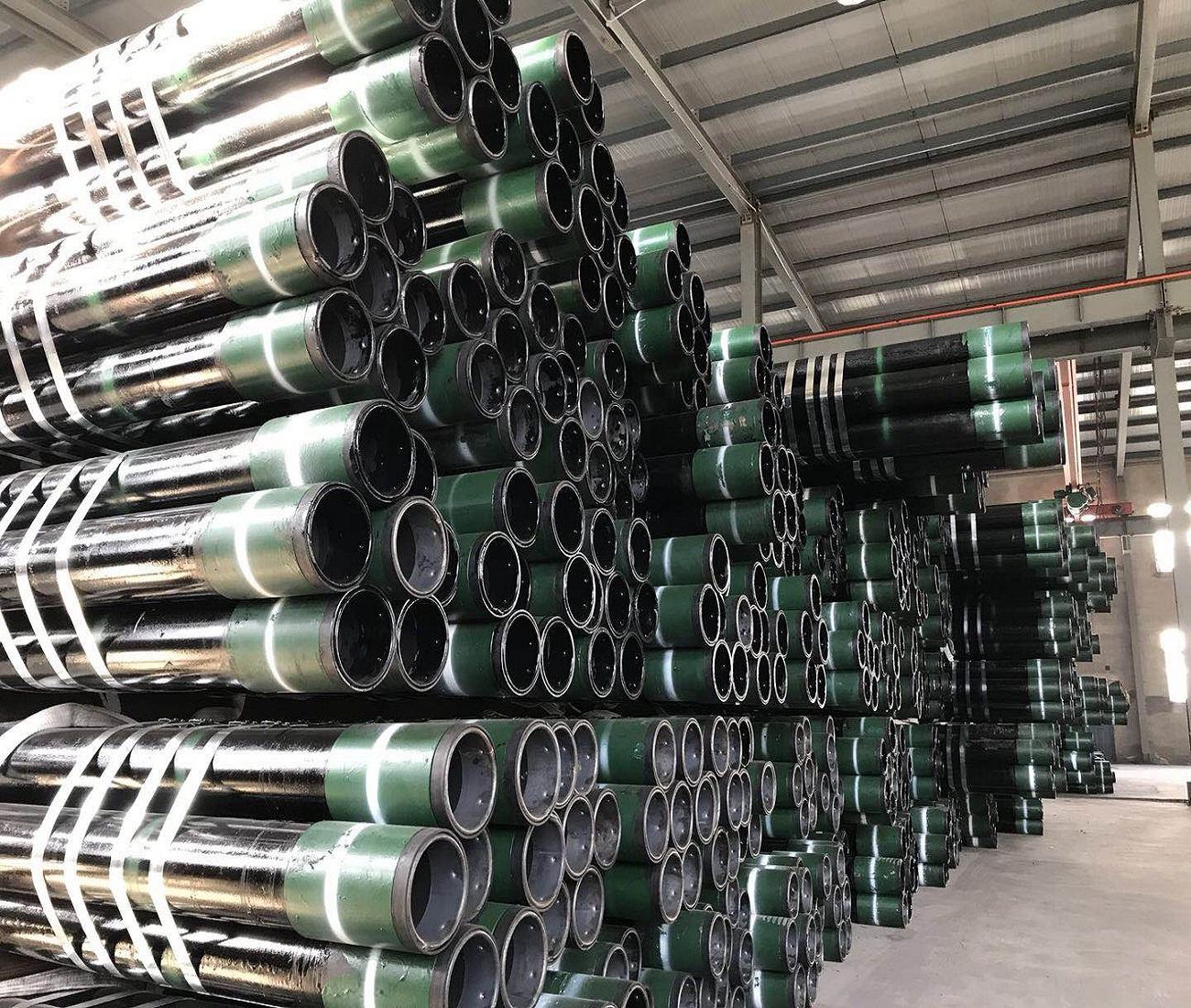

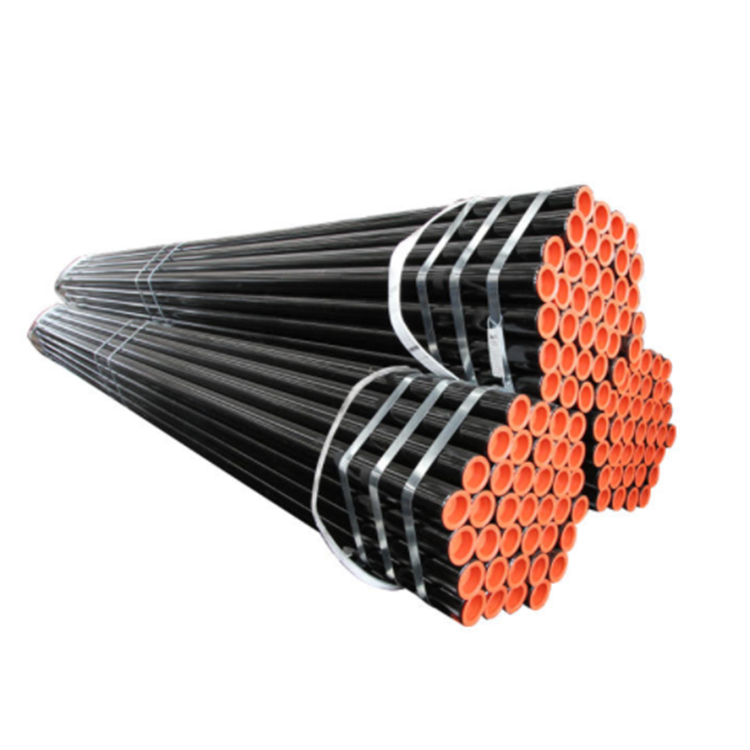

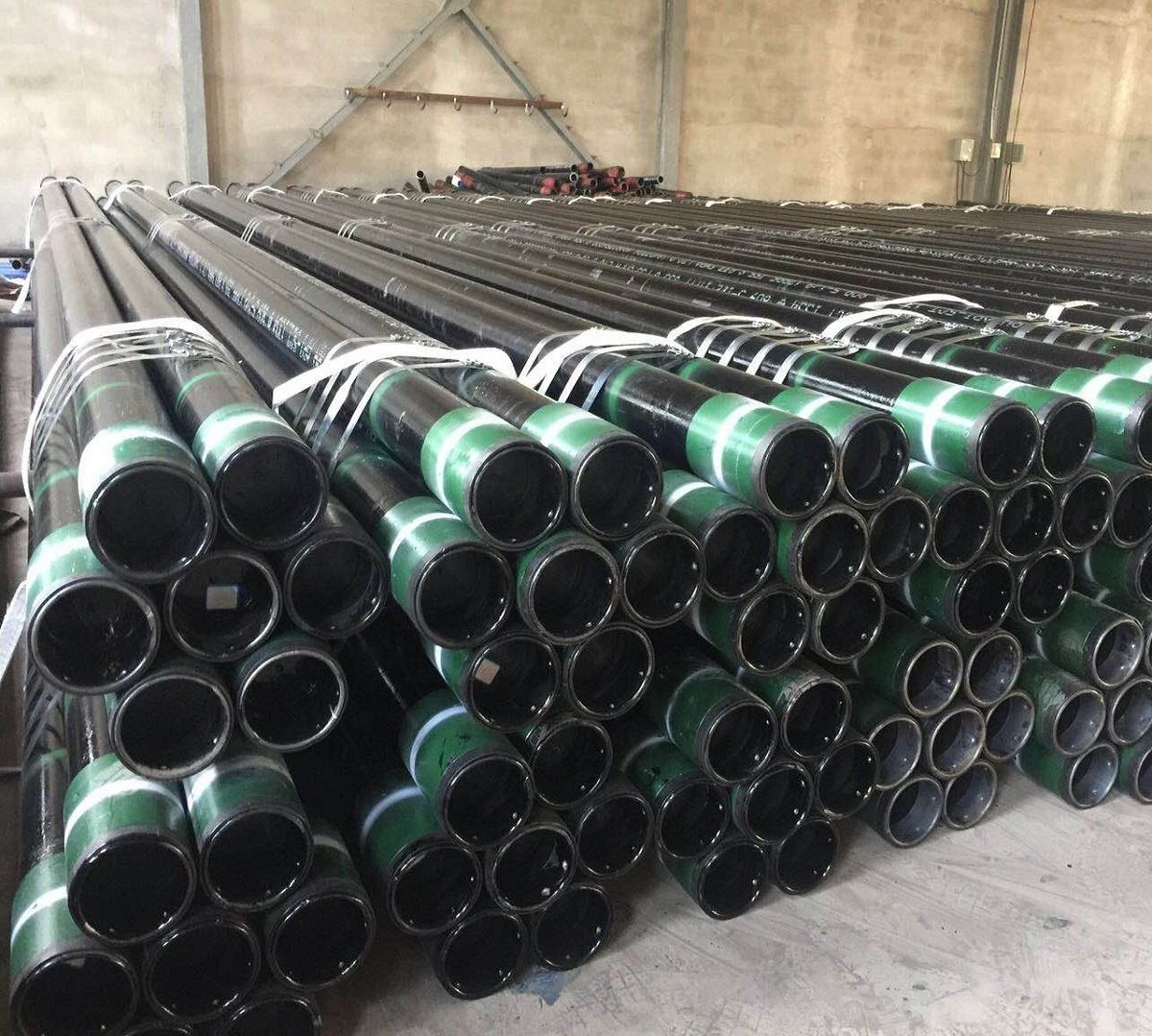

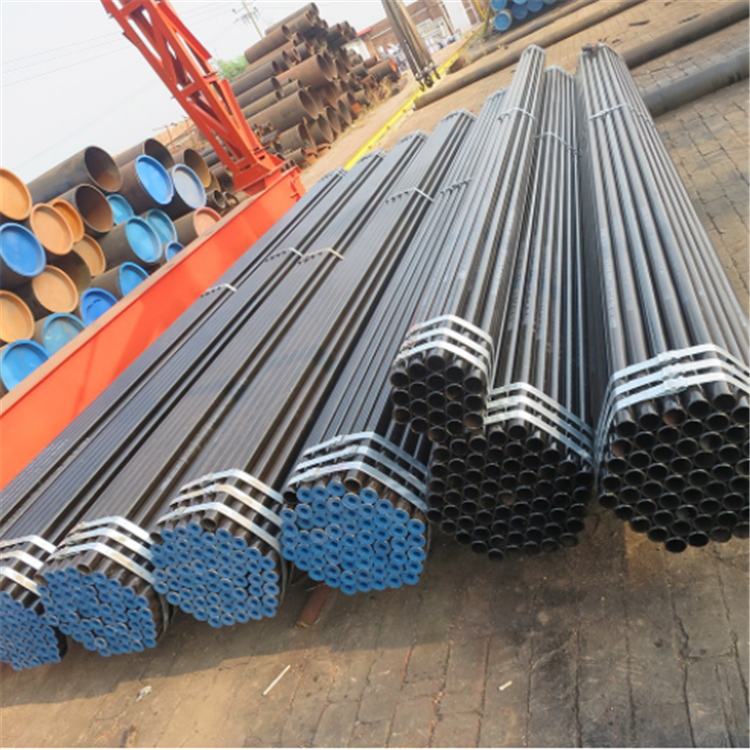

Product Display
Application

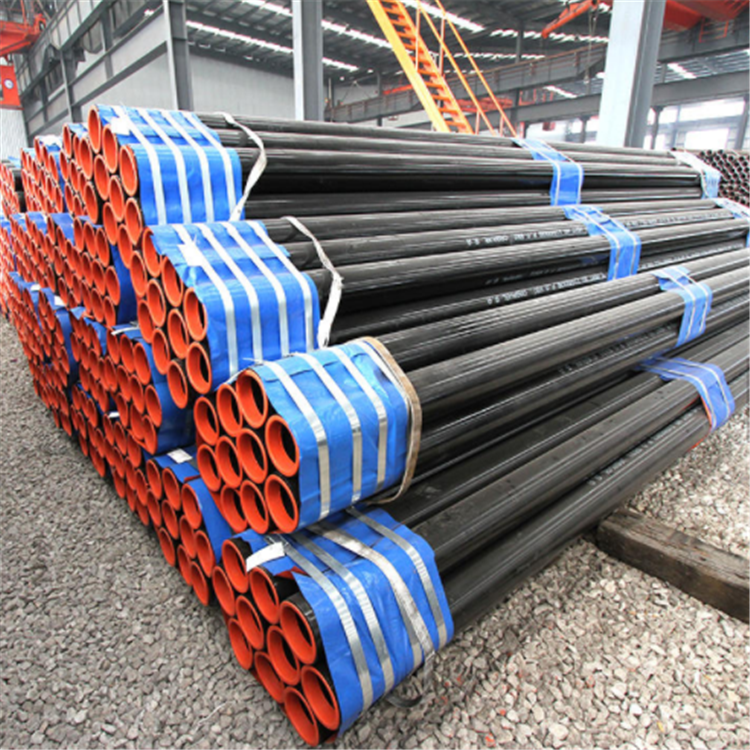

Packaging & Shipping
Company Profile
Shandong Jiajiena Metal Products Co., Ltd. is a comprehensive steel enterprise integrating warehousing, processing, trading and distribution. It has its own processing plant, which can process a series of surface processing, cutting processing, forming, rolling, sandblasting and so on.The company's main products are stainless steel, carbon steel, galvanized products and other coils, plates, and profiles! There is a stock of 20,000 tons of flat panels of various specifications. Own storage and processing 45,000 square meters. It has more than ten processing equipments such as cold-rolled slitting, decoiling proces and surface processing, with an annual processing capacity of 150,000 tons.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are a factory. Our factory locates in Liaocheng City. If you would like to visit our factory,just inform us in advance, we warmly welcome all of our clients to visit us.
Q2: How about the MOQ? If my first order qty is small, will you accept?
A: Of course, we would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.
Q3: What is your main products?
A: Our main products are listed as follows: Pricision steel pipe, Hot Rolled steel pipe, Cold Drawn steel pipe, Seamless steel pipe, Alloy steel pipe, Bearing steel pipe, Welded pipe, Spiral pipe, Galvanized pipe etc.
Q4: What product information do I need to provide?
A: size , payment method, quantity and destination port.
Q5: How long does your delivery time take?
A: In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special
circumstances occur.
