Anti-corrosion Pipeline
The pipeline includes seamless pipe and welded steel pipe, with plain end,beveled end, threaded end and socket end; API 5L seamless steel pipe steel grades: gr.b, X42, X46, 52, X56, X60, X65, X70,etc. Its connection modes are welding, coupling connection, socket connection, etc
Product Paramenters
| Standard | ASTM, DIN, API, GB,ANSI,EN |
| Standard2 | ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 |
| Grade Group | A53-A369, 16Mn, Q195-Q345, 10#-45#,X42,X46,X52,X56,X60,X65,X70 |
| Grade | A53(A,B), 16Mn, Q235, Q345, Q195, Q215, 10#, 20#, 45# |
| Section Shape | Round |
| Place of Origin | China |
| Technique | Hot Rolled |
| Certification | API |
| Special Pipe | API Pipe |
| Alloy Or Not | Non-alloy |
| Application | Water, Gas, Oil transportation seamless steel line pipe |
| Surface Treatment | Black painting or 3pe,3pp,fbe anti-corrosion coated |
| Thickness | 2.5 - 80 mm |
| Outer Diameter(Round) | 25- 1020mm |
| Product name | Anti-corrosion pipeline |
| Keywords | pipeline |
| OEM | accept |
| Visit factory | welcomed |
| Section shape | round |
| Length | 5.8-12m |
| Brand Name | JJN Steel |
| Usage | underground water,gas,oil supply steel line pipe |
| W.T.≤25.0mm(0.984in)API 5L PSL2 Pipe line Chemical Composition(%) | ||||||||||
| Grade | C | Si | Mn | P | S | V | Nb | TI | CEIIW | CEPcm |
| BR | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42R | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| BN | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42N | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46N | ≤0.024 | ≤0.4 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | a | a |
| BQ | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X42Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X65Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X70Q | ≤0.018 | ≤0.45 | ≤1.8 | ≤0.025 | ≤0.015 | a | a | a | a | a |
| a: according to API standard or requirements | ||||||||||
| API 5L PSL2 Pipe line Mechanical properties | ||||
| Grade | Yield strength Rt0,5 Mpa(psi) | Tensile strength Rm Mpa(psi) | Rt0,5/Rm | Elongation 50mm or 2in |
| BR/BN/BQ | 245(35500)-450(65300) | 415(60200)-655(95000) | ≤0.93 | Af |
| X42R/X42N/X42Q | 290(42100)-495(71800) | ≥415(60200) | ≤0.93 | Af |
| X46N/X46Q | 320(46400)-525(76100) | 435(63100)-655(95000) | ≤0.93 | Af |
| X52N/X52Q | 360(52200)-530(76900) | 460(66700)-760(110200) | ≤0.93 | Af |
| X56N/X56Q | 390(56600)-545(79000) | 490(71100)-760(110200) | ≤0.93 | Af |
| X60N/X60Q | 415(60200)-565(81900) | 520(75400)-760(110200) | ≤0.93 | Af |
| X65Q | 450(65300)-600(87000) | 535(77600)-760(110200) | ≤0.93 | Af |
| X70Q | 485(70300)-635(92100) | 570(82700)-760(110200) | ≤0.93 | Af |

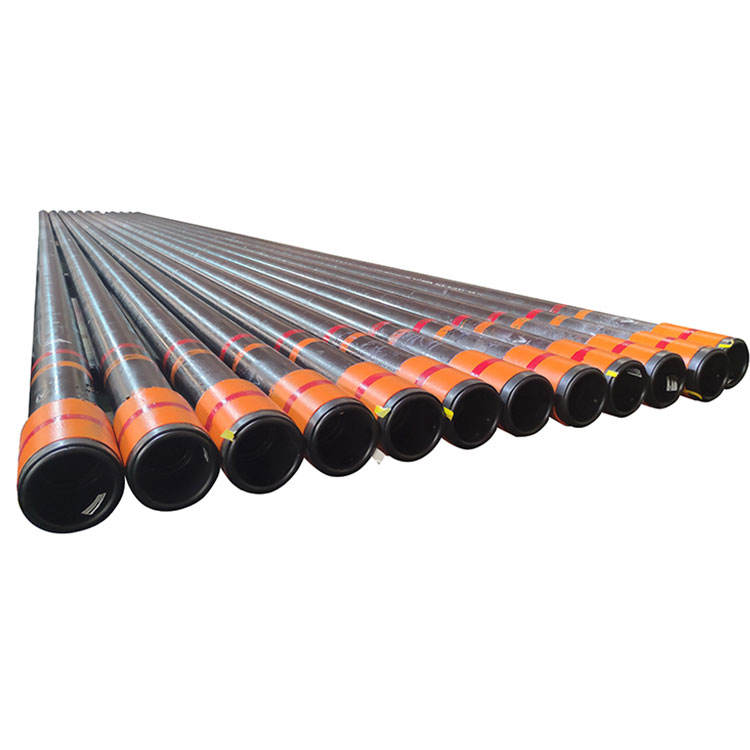

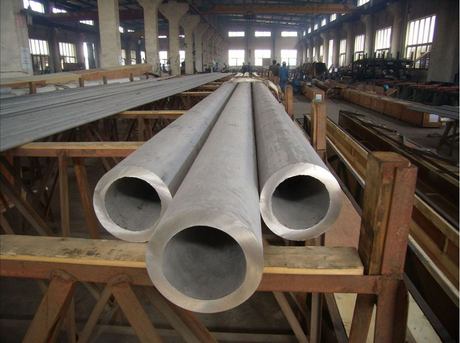

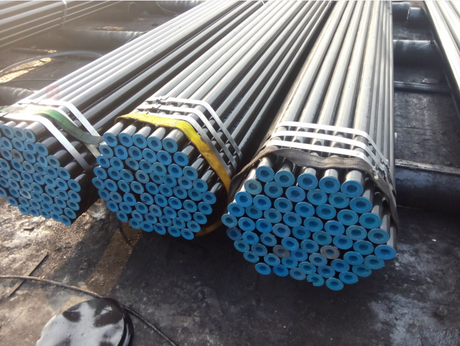

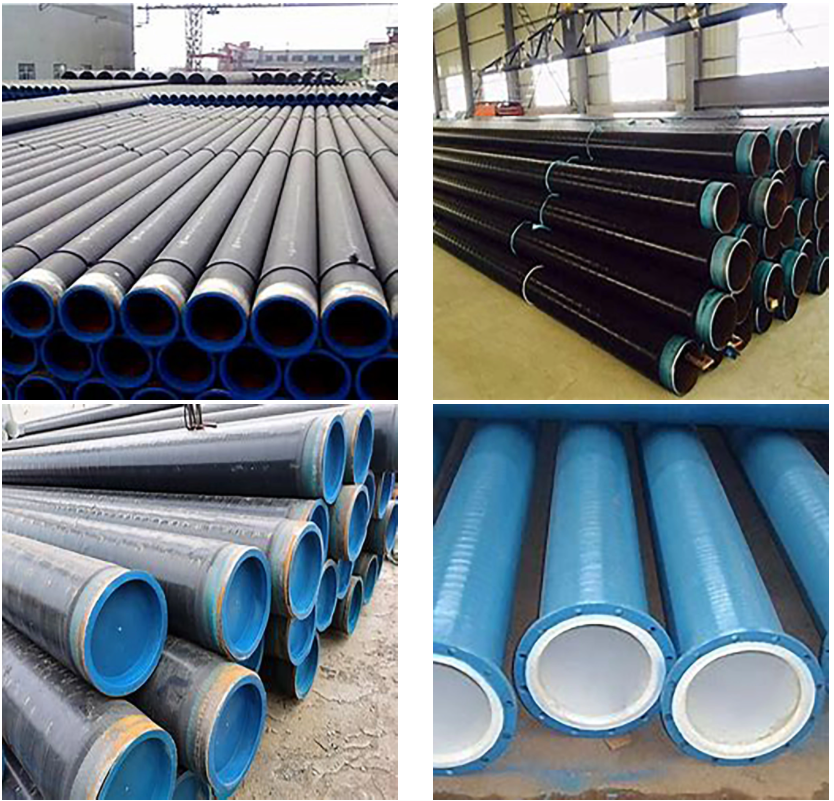

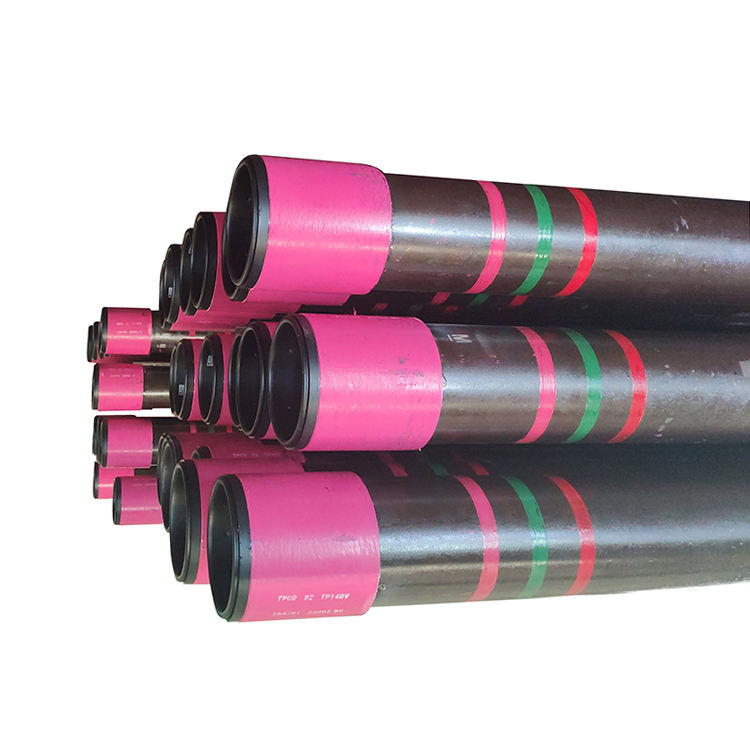

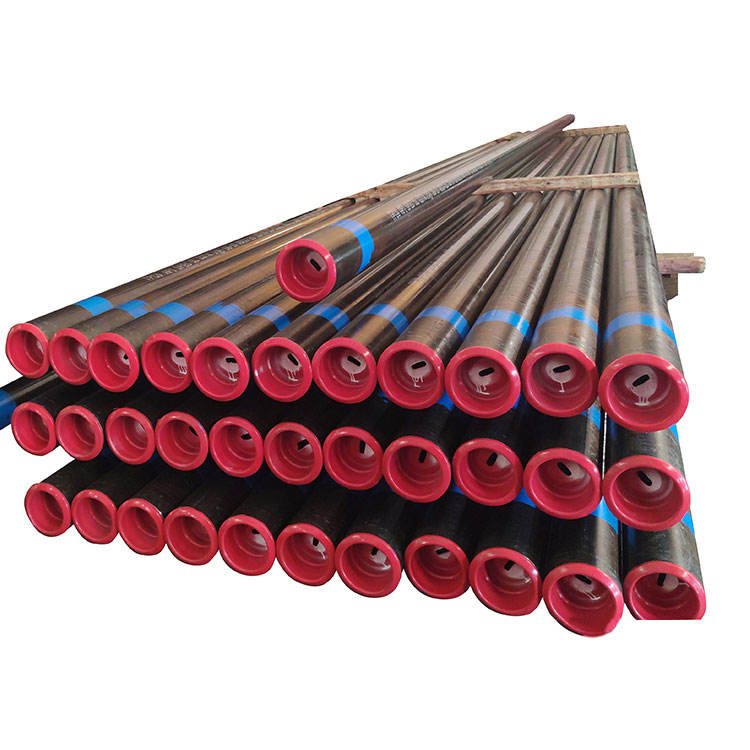

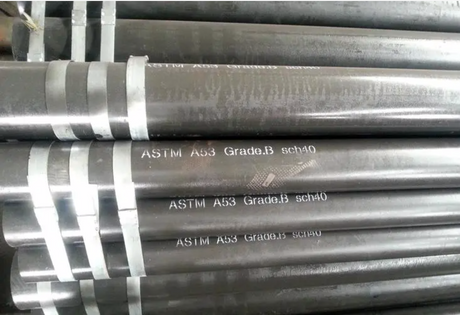

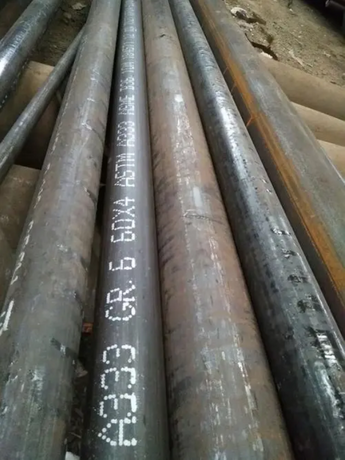

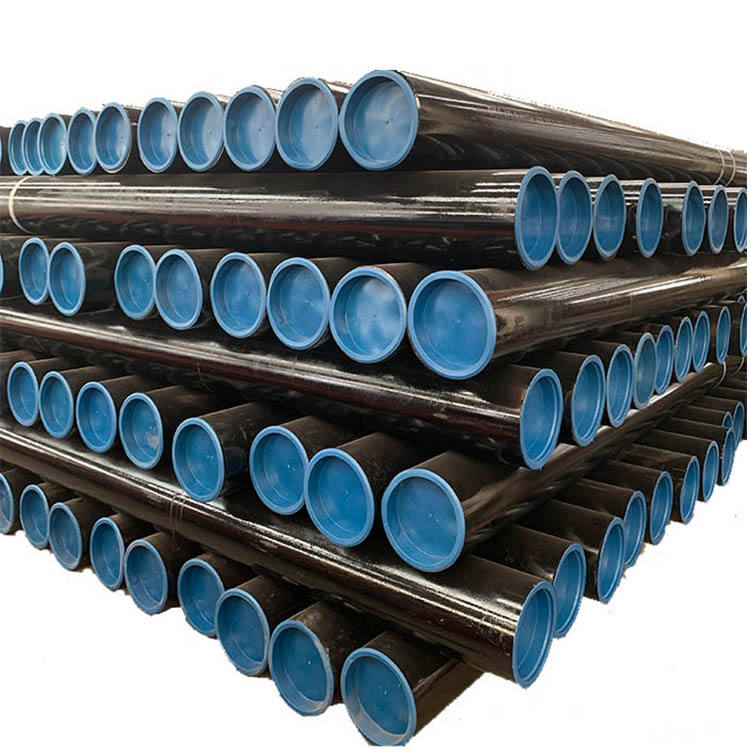

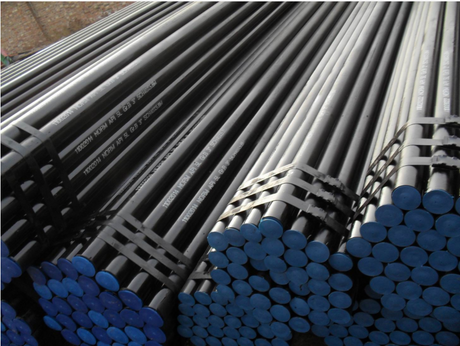

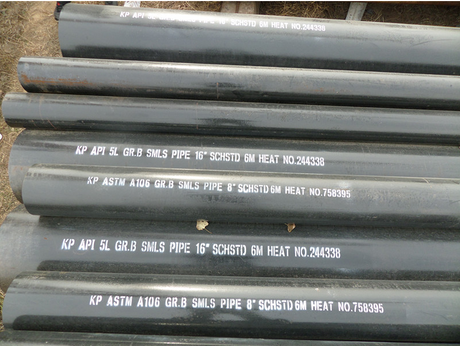

Product Display

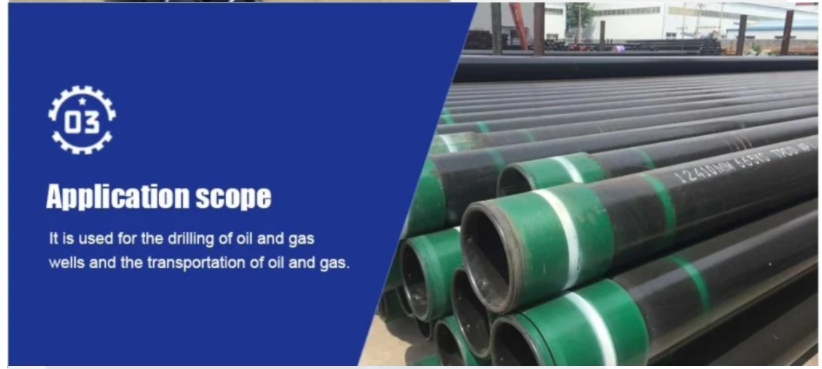

Application

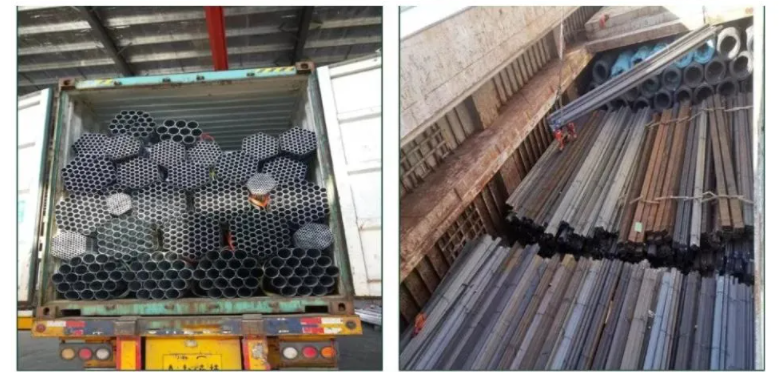

Packaging & Shipping

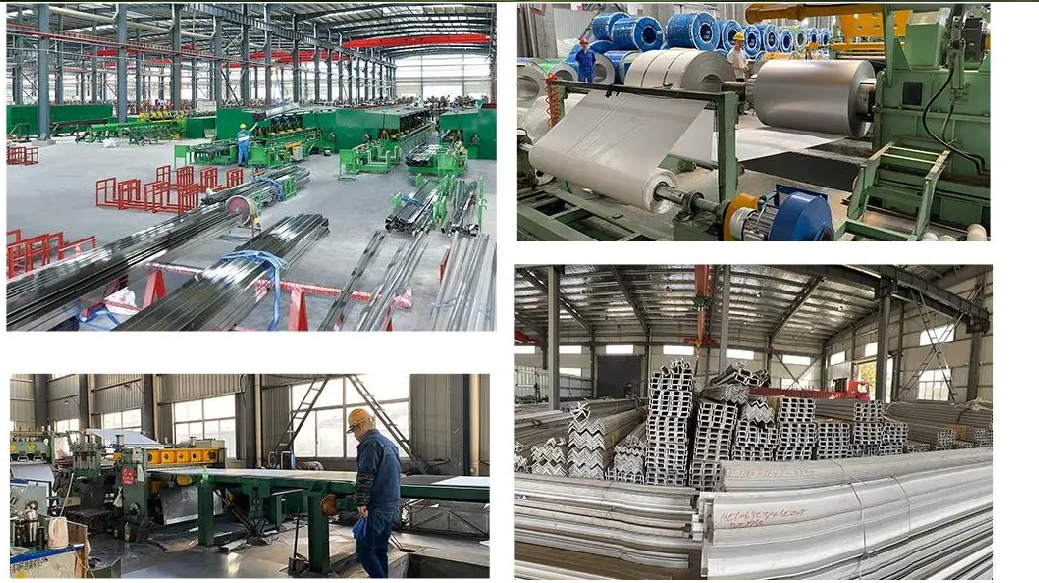

Company Profile
Shandong Jiajiena Metal Products Co., Ltd. is a comprehensive steel enterprise integrating warehousing, processing, trading and distribution. It has its own processing plant, which can process a series of surface processing, cutting processing, forming, rolling, sandblasting and so on.The company's main products are stainless steel, carbon steel, galvanized products and other coils, plates, and profiles! There is a stock of 20,000 tons of flat panels of various specifications. Own storage and processing 45,000 square meters. It has more than ten processing equipments such as cold-rolled slitting, decoiling proces and surface processing, with an annual processing capacity of 150,000 tons.
FAQ
Q:Can we get the some samples?
A: Yes , we could offer the sample for free charge. But do not pay the cost of freight . If you place the order after confirm
the sample , we will refund your express freight or deducte it from the order amount,
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers' benefit.
Q: What is your terms of payment?
A: Payment<=5000USD, 100% deposit.Payment>=5000USD . 30% T/T deposit. 70% balance by T/T or L/C before shippment.
