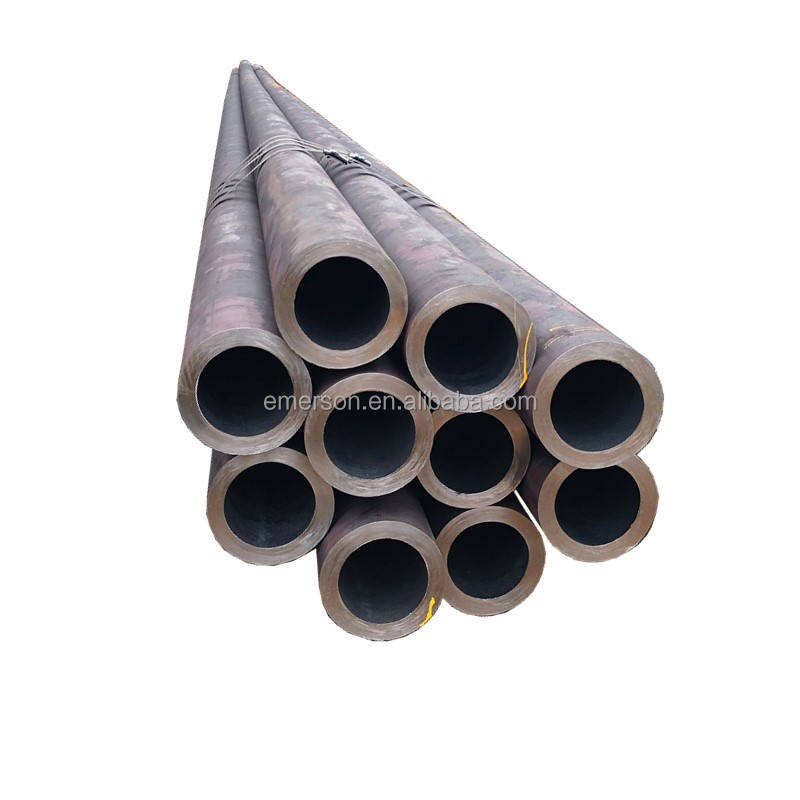

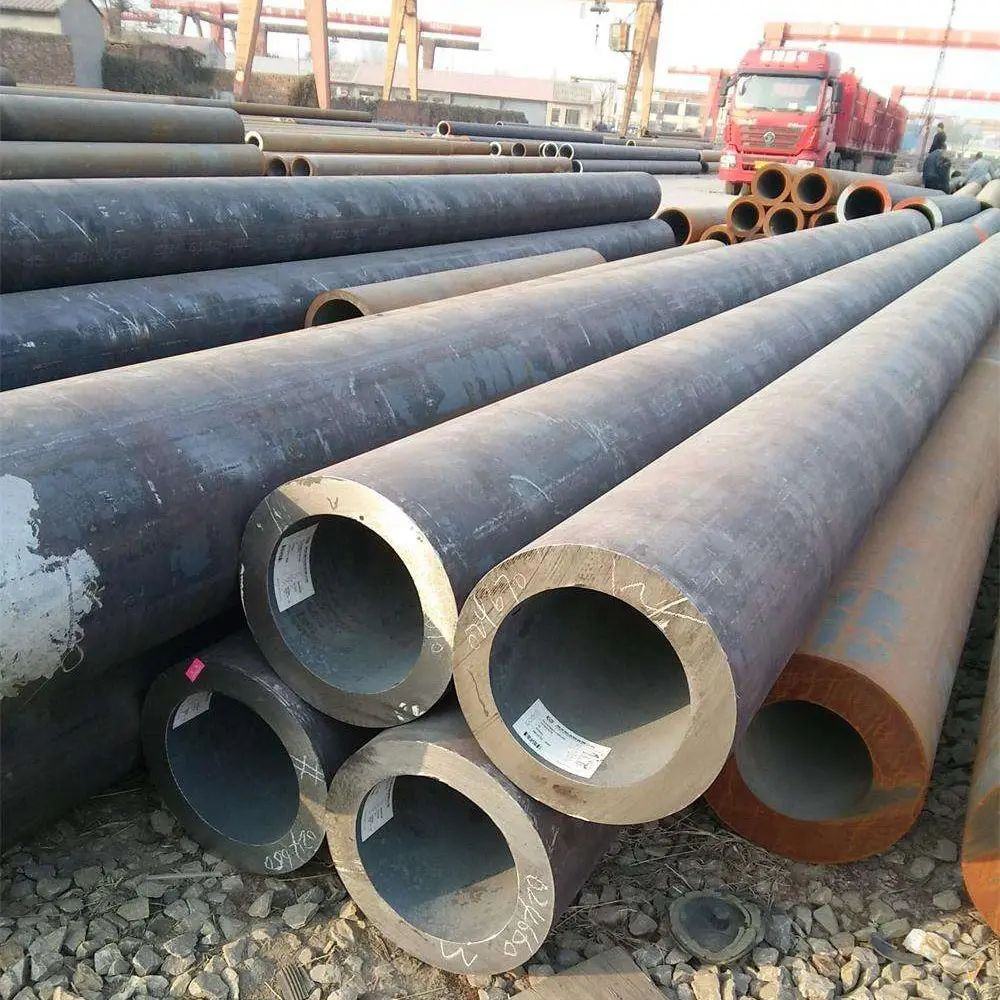

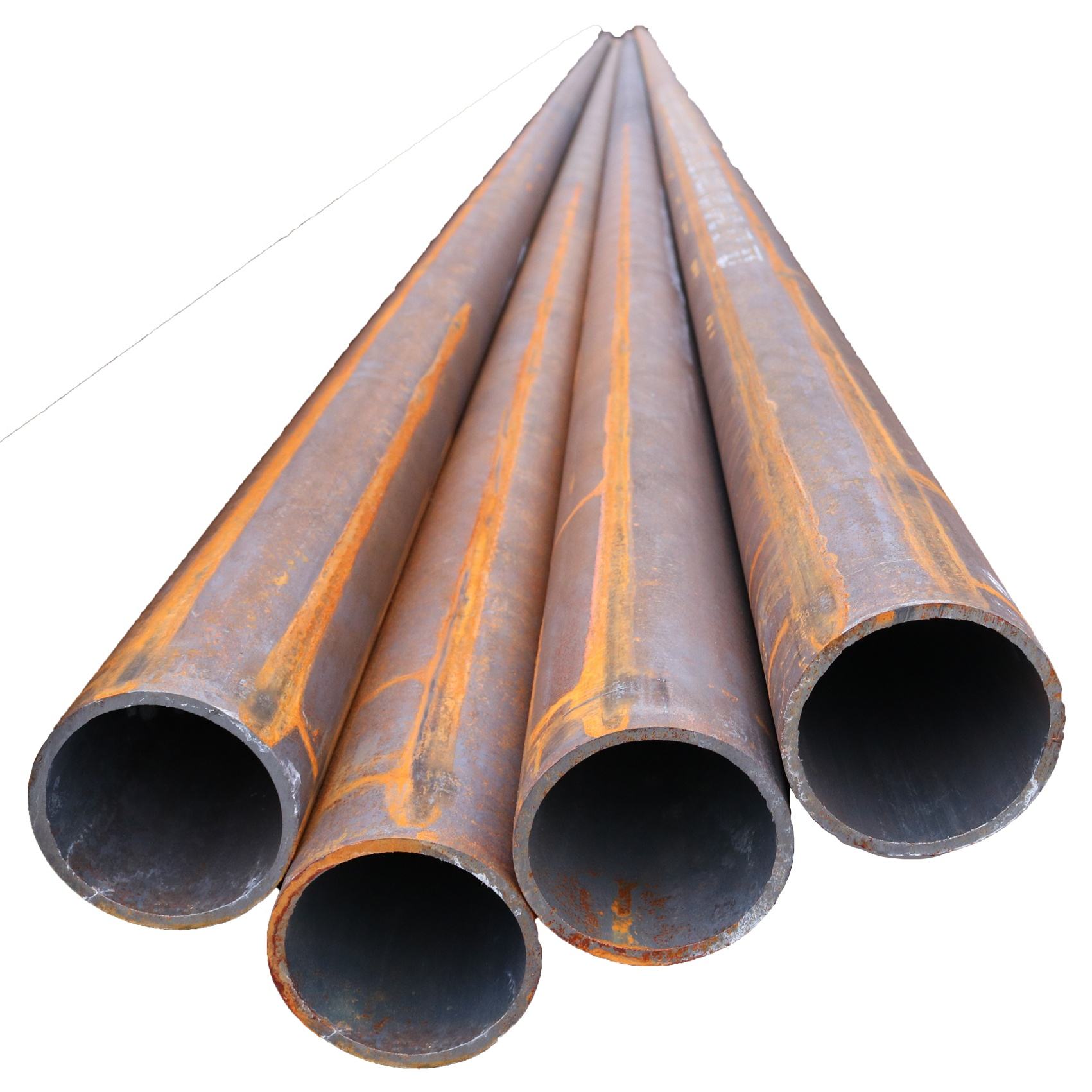

Anti-corrosion Pipeline
Steel pipeline is used to transport the oil, gas and water drawn out of the ground to the oil and natural gas industry enterprises through the pipeline. The pipeline includes seamless pipe and welded steel pipe, with plain end,beveled end, threaded end and socket end; API 5L seamless steel pipe steel grades: gr.b, X42, X46, 52, X56, X60, X65, X70,etc. Its connection modes are welding, coupling connection, socket connection, etc
Product Paramenters
| Standard | ASTM, DIN, API, GB,ANSI,EN |
| Standard2 | ASTM A53, ASTM A106, DIN 17175, API 5L, GB/T9711 |
| Grade Group | A53-A369, 16Mn, Q195-Q345, 10#-45#,X42,X46,X52,X56,X60,X65,X70 |
| Grade | A53(A,B), 16Mn, Q235, Q345, Q195, Q215, 10#, 20#, 45# |
| Section Shape | Round |
| Place of Origin | China |
| Technique | Hot Rolled |
| Certification | API |
| Special Pipe | API Pipe |
| Alloy Or Not | Non-alloy |
| Application | Water, Gas, Oil transportation seamless steel line pipe |
| Surface Treatment | Black painting or 3pe,3pp,fbe anti-corrosion coated |
| Thickness | 2.5 - 80 mm |
| Outer Diameter(Round) | 25- 1020mm |
| Product name | Anti-corrosion pipeline |
| Keywords | pipeline |
| OEM | accept |
| Visit factory | welcomed |
| Section shape | round |
| Length | 5.8-12m |
| Brand Name | JJN Steel |
| Usage | underground water,gas,oil supply steel line pipe |
| W.T.≤25.0mm(0.984in)API 5L PSL2 Pipe line Chemical Composition(%) | ||||||||||
| Grade | C | Si | Mn | P | S | V | Nb | TI | CEIIW | CEPcm |
| BR | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42R | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| BN | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | a | a | ≤0.04 | ≤0.043 | ≤0.25 |
| X42N | ≤0.024 | ≤0.4 | ≤1.2 | ≤0.025 | ≤0.015 | ≤0.06 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46N | ≤0.024 | ≤0.4 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60N | ≤0.024 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.10 | ≤0.05 | ≤0.04 | a | a |
| BQ | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X42Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X46Q | ≤0.018 | ≤0.45 | ≤1.4 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X52Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.05 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X56Q | ≤0.018 | ≤0.45 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.07 | ≤0.05 | ≤0.04 | ≤0.043 | ≤0.25 |
| X60Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X65Q | ≤0.018 | ≤0.45 | ≤1.7 | ≤0.025 | ≤0.015 | a | a | a | ≤0.043 | ≤0.25 |
| X70Q | ≤0.018 | ≤0.45 | ≤1.8 | ≤0.025 | ≤0.015 | a | a | a | a | a |
| a: according to API standard or requirements | ||||||||||
| API 5L PSL2 Pipe line Mechanical properties | ||||
| Grade | Yield strength Rt0,5 Mpa(psi) | Tensile strength Rm Mpa(psi) | Rt0,5/Rm | Elongation 50mm or 2in |
| BR/BN/BQ | 245(35500)-450(65300) | 415(60200)-655(95000) | ≤0.93 | Af |
| X42R/X42N/X42Q | 290(42100)-495(71800) | ≥415(60200) | ≤0.93 | Af |
| X46N/X46Q | 320(46400)-525(76100) | 435(63100)-655(95000) | ≤0.93 | Af |
| X52N/X52Q | 360(52200)-530(76900) | 460(66700)-760(110200) | ≤0.93 | Af |
| X56N/X56Q | 390(56600)-545(79000) | 490(71100)-760(110200) | ≤0.93 | Af |
| X60N/X60Q | 415(60200)-565(81900) | 520(75400)-760(110200) | ≤0.93 | Af |
| X65Q | 450(65300)-600(87000) | 535(77600)-760(110200) | ≤0.93 | Af |
| X70Q | 485(70300)-635(92100) | 570(82700)-760(110200) | ≤0.93 | Af |
FAQ
Q1:How about thequality?
A:Third party inspections are always welcomed, like TUV. All of the goods will be released together with MTC and stamped by TPI.
Q2: How long is the delivery time?
A: Generally about 5-10 days if the goods in stock. Or will be 15-20 days if the goods are not in stock. And alsoaccording to the quantity.
Q3:Do you provide samples? Free or not?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q4:May I customize the steel pipe?
A:Sure you can, we can produce according to your requirement, you can send the CAD ordesign drawing.
Q5:Any value-added Services?
A:Fottunately for you,we are very experience in this industry. We have equipped our warehouse with the necessitiesto perform in-house painting,coating,pipe cutting, jointed welding, and make machanical fabricate per to request.
Q6: How about the trade terms?
A: EXW, FOB, CFR, CIF, LC will be accepted.
