Structural Sections Galvanized Square Carbon Steel Pipe steel pipes Tube High quality galvanized square tube

Section Shape： rectangular
Surface Treatment： galvanized
Tolerance： ±1%
Oiled or Non-oiled： Slightly Oiled
Invoicing: by theoretical weight

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Seamless steel pipe is perforated by the whole round steel pipe, there is no weld on the surface of the steel pipe. Galvanized steel pipe is a steel pipe with a hot-dip galvanized or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipes in the petroleum industry, especially in offshore oil fields, and oil heaters and condensers in chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, and pipes for trestle piles, supporting frames for mine tunnels, etc.

Shape	Square:2020-200200mm
Shape	Rectangular :3020-250150mm
Thickness	0.12-4 mm, or as request
Length	3-12m,or as per your request
Technique	Hot Rolled, Cold Rolled,ERW,High-frequency welded,Extruded
Surface	Bared, Oil, Galvanized, Paint,etc
Standard	GB/T3094-2000,GB/T6728-2002,ASTM A500,JIS G3466,DIN EN10210,or others
Material	Q195,Q235,Q275,Q345,S355,St33,St37,St52A500,A513,A106 and so on
Certification	ISO9001:2000,CE,SGS
Package	Wooden box,steel strip,pallet,or as your request
Productivity	15000tons/month
Usage	Machinery manufacture,Roads and Bridges,Construction,Transportation

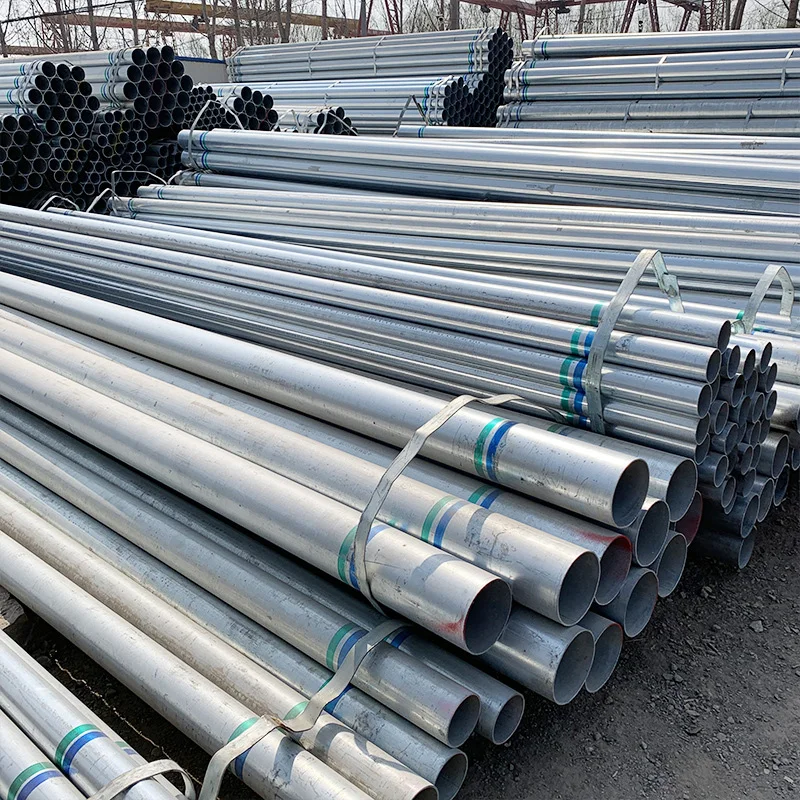

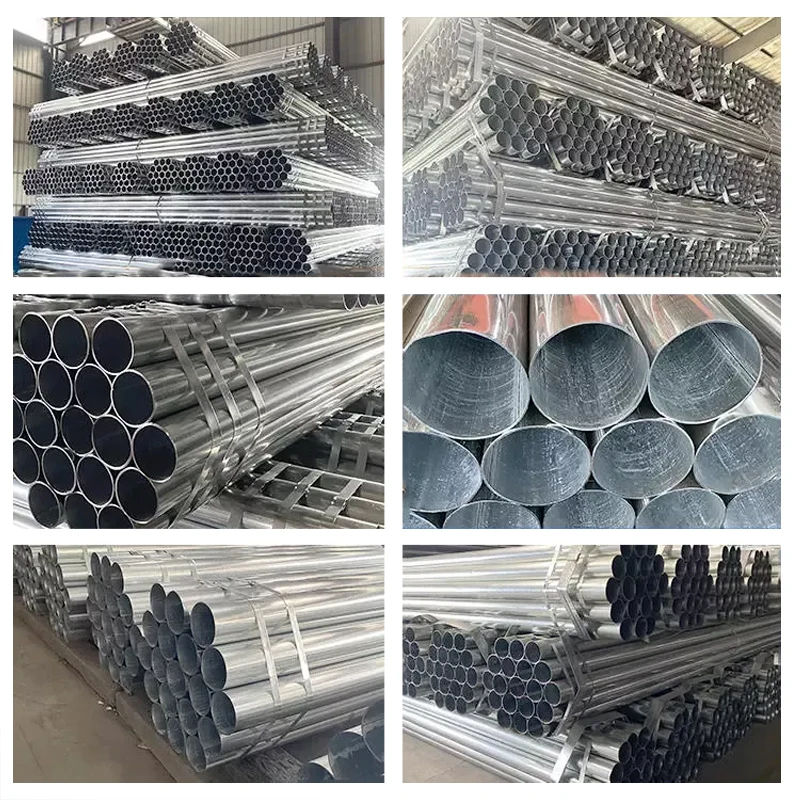

 Main size of our round galvanized steel tube

Outer diameter (mm)		Wall thickness (mm)	Length (meters)
1/2''	21.3	0.6~3.0	0.3m~12m
3/4''	26.7	0.6~3.0	0.3m~12m
1''	33.4	1.0~3.0	0.3m~12m
1-1/4''	42.3	1.0~4.0	0.3m~12m
1-1/2''	48.3	1.0~4.0	0.3m~12m
2''	60.3	1.5~4.0	0.3m~12m
2-1/2''	76.1	1.5~4.0	0.3m~12m
3''	88.9	1.5~9.5	0.3m~12m
4''	114.3	2.0~9.5	0.3m~12m
5''	141.3	3.0~9.5	1m~12m
6''	168.3	3.0~12.0	1m~12m
8''	219.1	3.2~12.0	1m~12m
10''	273	3.2~12.0	1m~12m
12''	323.8	6.0~15.0	1m~12m
14''	355.6	8.0~15.0	1m~12m
16''	406.4	8.0~20.0	1m~12m

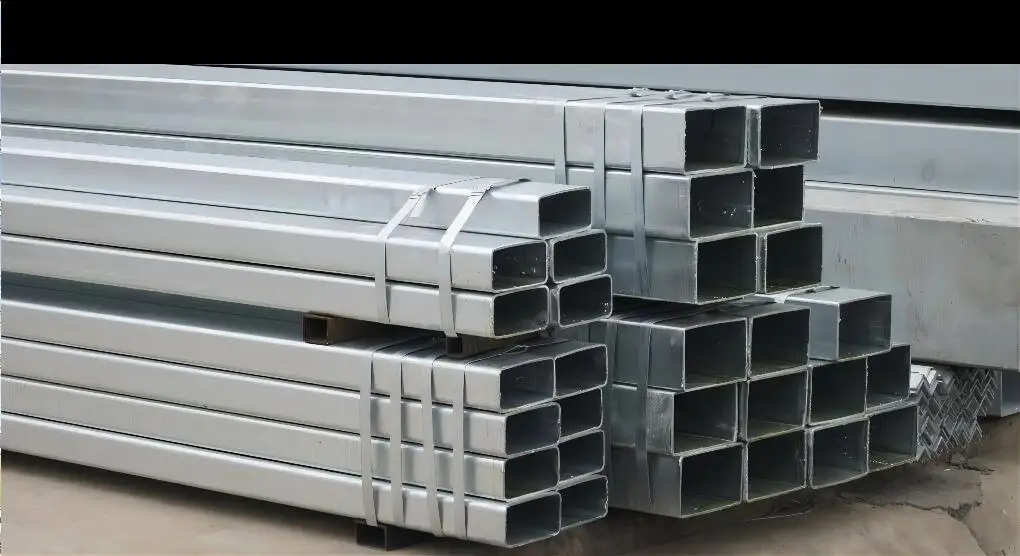

 Normal size of square/rectangle galvanized seamless steel tube

Square tube(mm)		Rectangle tube (mm)
16×16×0.4~1.5	380×380×8.0~14.0	10×20×0.6~1.5	250×150×6~12.0
18×18×0.4~1.5	400×400×8.0~14.0	14×21×0.6~1.5	250×100×6~12.0
20×20×0.4~1.5	420×420×10.0~14.0	15×30×1.5~1.5	250×200×6~12.0
25×25×0.6~2.0	450×450×10.0~14.0	15×38×0.6~1.5	300×150×6~12.0
30×30×0.6~4.0	480×480×10.0~14.0	20×30×0.6~2.0	300×200×6~12.0
34×34×1.0~2.0	500×500×10.0~14.0	20×40×0.8~2.0	300×250×6~12.0
35×35×1.0~4.0		20×50×1.0~2.0	400×250×8~12.0
38×38×1.0~4.0	550×550×10.0~40.0	22×35×0.9~2.0	400×300×8~12.0
40×40×1.0~4.5	600×600×10.0~40.0	25×40×0.9~3.75	450×200×8~12.0
44×44×1.0~4.5	700×700×10.0~40.0	25×65×1.0~2.0	450×250×8~12.0
45×45×1.0~5.0	800×800×10.0~50.0	30×40×1.0~3.75	400×300×8~12.0
50×50×1.0~5.0	900×900×10.0~50.0	30×45×1.0~3.75	400×350×8~12.0
60×60×1.5~5.0	1000×1000×10.0~50.0	30×50×1.0~4.0	500×200×10~12.0
70×70×2.0~6.0		30×60×1.0~4.5	500×250×10~12.0
75×75×2.0~6.0		40×50×1.0~4.5	500×300×10~12.0
80×80×2.0~6.0		40×60×1.0~5.0	500×350×10~12.0
85×85×2.0~6.0		40×80×1.5~5.0	500×400×10~12.0
95×95×2.0~8.0		40×100×2.0~5.0	500×450×10~12.0
100×100×2.0~8.0		50×60×2.0~5.0
120×120×4.0~8.0		50×80×2.0~5.0	600×200×10~28.0
150×150×6.0~10.0		50×100×2.0~8.0	600×400×10~28.0
180×180×6.0~12.0		60×80×2.0~6.0	600×500×10~28.0
200×200×6.0~12.0		80×100×2.0~8.0	800×400×10~28.0
220×220×6.0~14.0		120×60×2.5~10.0	800×600×10~28.0
250×250×6.0~14.0		120×80×2.5~10.0	800×700×10~28.0
280×280×6.0~14.0		150×100×2.5~12.0	1000×400×10~28.0
300×300×8.0~14.0		180×150×2.5~12.0	1000×500×10~28.0
320×320×8.0~14.0		200×100×4~12.0	1000×600×10~28.0
350×350×8.0~14.0		200×150×4~12.0	1000×800×10~28
