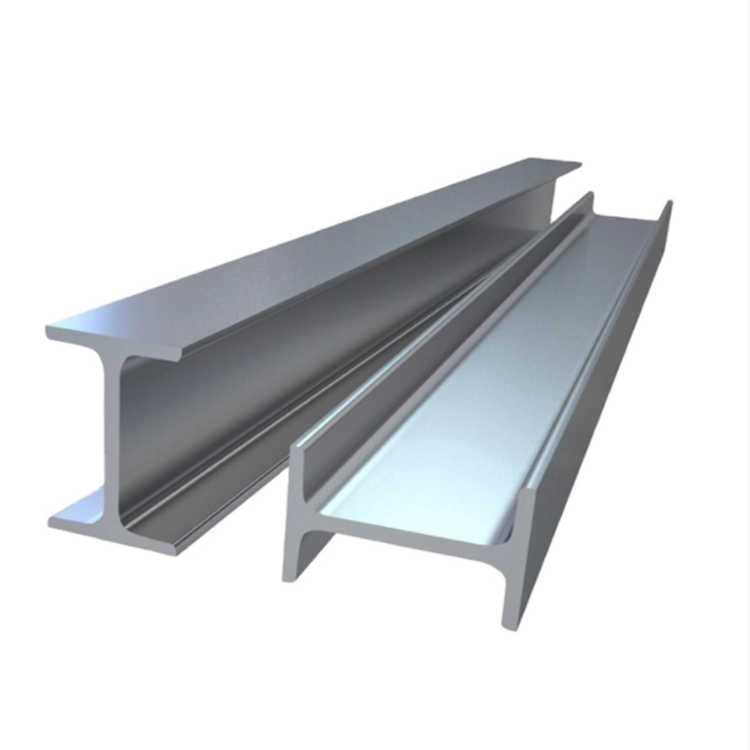

Product Description

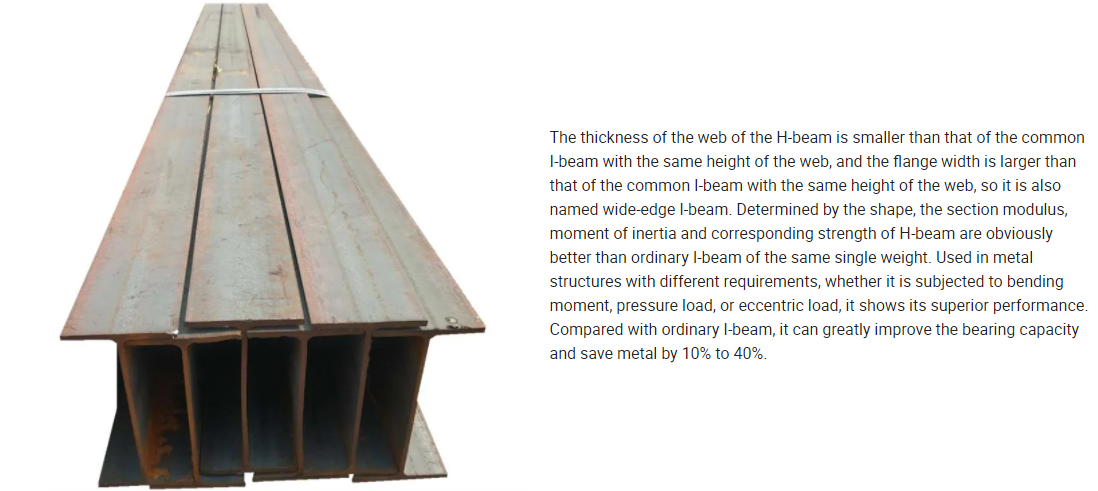

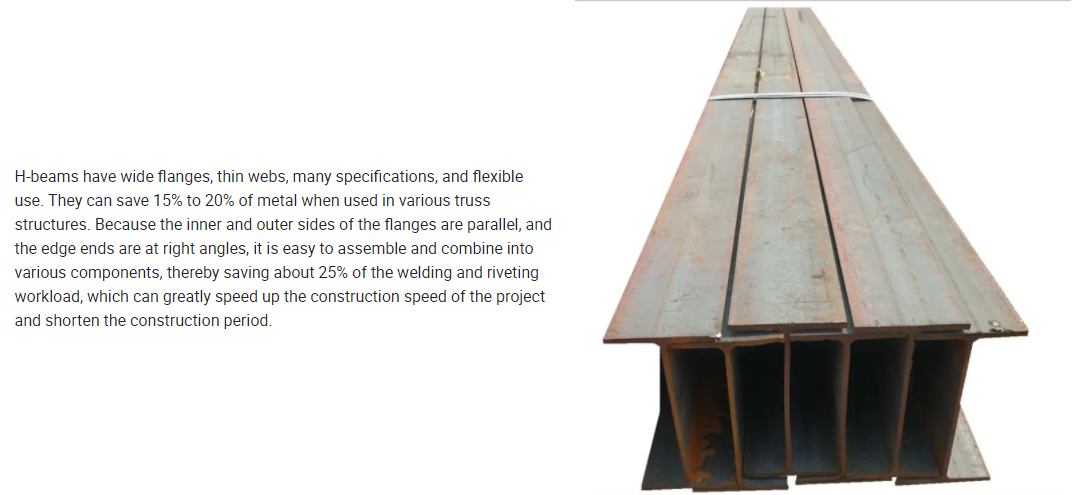

H-steel is mainly divided into ordinary I-steel light I-steel and wide flange I-steel according to the height ratio of flange and web and divided into wide medium width narrow wide flange I-steel before the two production specifications for 10 60, that is, the corresponding height is 10 cm 60 cm at the same height, light I-steel flange narrow web thin weight light Wide flange I-beam is also known as H-beam, the section is characterized by two legs parallel, and the inside of the leg is not oblique it belongs to the economic section steel, is rolled on the four-roller universal rolling mill, so also known as universal I-beam ordinary light I-beam has formed a national standard.
| Material | Q195,Q215,Q235B,Q345B, S235JR/S235/S355JR/S355, SS440/SM400A/SM400B |
| Standard | ISO 9001-2008 / ISO 630 / JIS / ASTMISO 9001-2008 / ISO 630 / JIS / ASTM / BS1387-1985/ GB/T3091-2001,GB/T13793-92, ISO630/E235B/ JIS G3101/JIS G3131/JIS G3106/ |
| Technique | Hot Rolled, casting |
| Surface | Oiled, sand blasting, galvanizing, painting,cutting as your request. |
| Packing | 1.Water-proof plastic cloth, |
| 2.Woven bags, | |
| 3.PVC package, | |
| 4.Steel strips in bundles | |
| 5.As your requirment | |
| Applicaiton | Building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower, container frame and warehouse |
| Payment&Trade Terms | 1.Payment : T/T,L/C, D/P, Western union |
| 2.Trade Terms:FOB/CFR/CIF | |
| 3.Minimum quantity of order : 5 MT (5,000KGS) | |
| Delivery Time | 1.Usually,within10-20days after receiving deposit or LC. |
| 2.According to the order quantity |

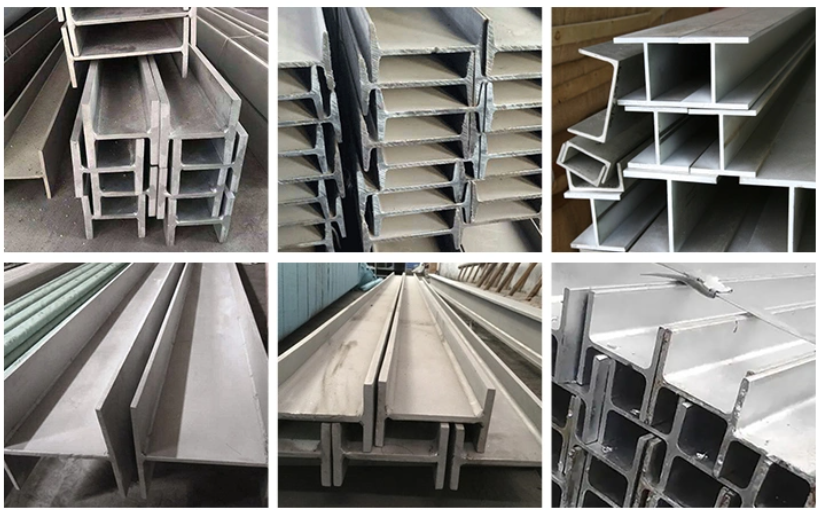

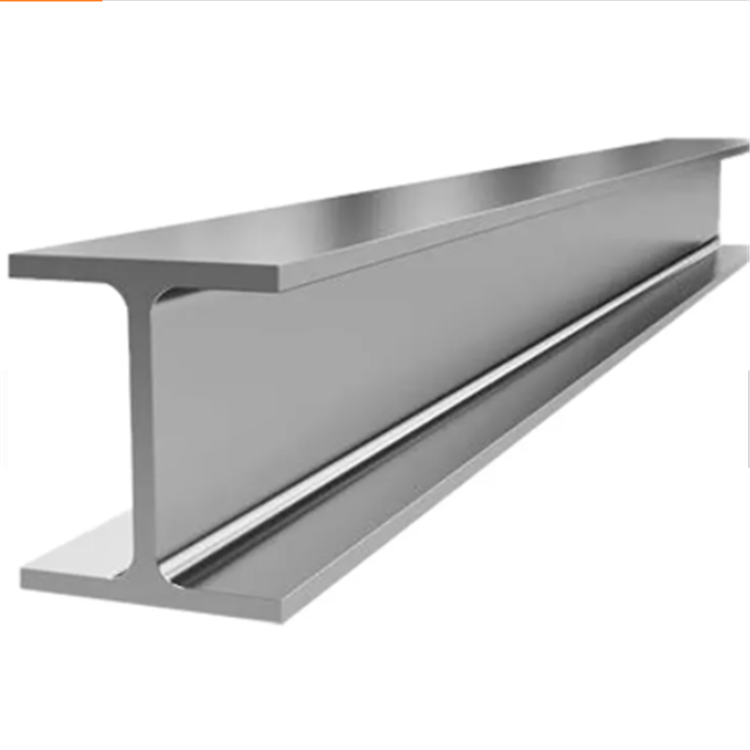

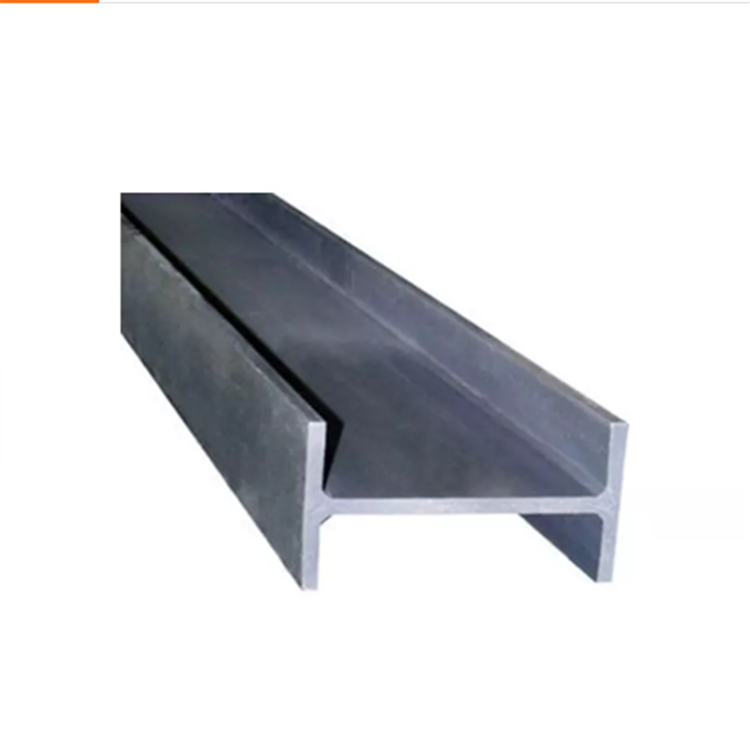

Detailed Photos

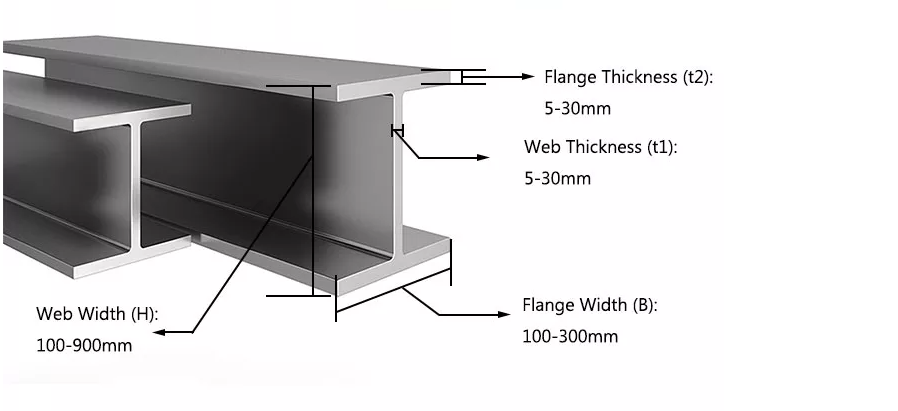

Product Size
| Specification | Weight(kg/m) | Specification | Weight(kg/m) |
| 100*50*5*7 | 9.54 | 394*398*11*18 | 147 |
| 100*100*6*8 | 17.2 | 394*405*18*18 | 169 |
| 125*60*6*8 | 13.3 | 396*199*7*11 | 56.7 |
| 125*125*6.5*9 | 23.8 | 400*150*8*13 | 55.8 |
| 148*100*6*9 | 21.4 | 400*200*8*13 | 66 |
| 150*150*7*10 | 31.9 | 400*400*13*21 | 172 |
| 150*75*5*7 | 14.3 | 400*408*21*21 | 197 |
| 175*175*7.5*11 | 40.4 | 414*405*18*28 | 233 |
| 175*90*5*8 | 18.2 | 428*407*20*35 | 284 |
| 194*150*6*9 | 31.2 | 440*300*11*18 | 124 |
| 198*99*4.5*7 | 18.5 | 446*199*8*12 | 66.7 |
| 200*100*5.5*8 | 21.7 | 450*150*9*14 | 65.5 |
| 200*200*8*12 | 50.5 | 450*200*9*14 | 76.5 |
| 200*204*12*12 | 56.7 | 458*417*30*50 | 415 |
| 244*175*7*11 | 44.1 | 482*300*11*15 | 115 |
| 244*252*11*11 | 64.4 | 488*300*11*18 | 129 |
| 248*124*5*8 | 25.8 | 492*465*15*20 | 204 |
| 250*125*6*9 | 29.7 | 496*199*9*14 | 79.5 |
| 250*250*9*14 | 72.4 | 498*432*45*70 | 605 |
| 250*255*14*14 | 82.2 | 500*150*10*16 | 77.1 |
| 294*200*8*12 | 57.3 | 500*200*10*16 | 89.6 |
| 294*302*12*12 | 85 | 502*465*15*25 | 241 |
| 298*149*5.5*8 | 32.6 | 502*470*20*25 | 261 |
| 300*150*6.5*9 | 37.3 | 506*201*11*19 | 103 |
| 300*300*10*15 | 94.5 | 582*300*12*17 | 137 |
| 300*305*15*15 | 106 | 588*300*12*20 | 151 |
| 338*351*13*13 | 106 | 594*302*14*23 | 175 |
| 340*250*9*14 | 79.7 | 596*199*10*15 | 95.1 |
| 344*348*10*16 | 115 | 600*200*11*17 | 106 |
| 344*354*16*16 | 131 | 606*201*12*20 | 120 |
| 346*174*6*9 | 41.8 | 692*300*12*24 | 166 |
| 350*175*7*11 | 50 | 700*300*13*24 | 185 |
| 350*350*12*19 | 137 | 792*300*14*22 | 191 |
| 350*357*19*19 | 156 | 800*300*14*26 | 210 |
| 388*402*15*15 | 141 | 890*299*15*23 | 213 |
| 390*300*10*16 | 107 | 900*300*16*28 | 243 |
| 912*302*18*34 | 28 |

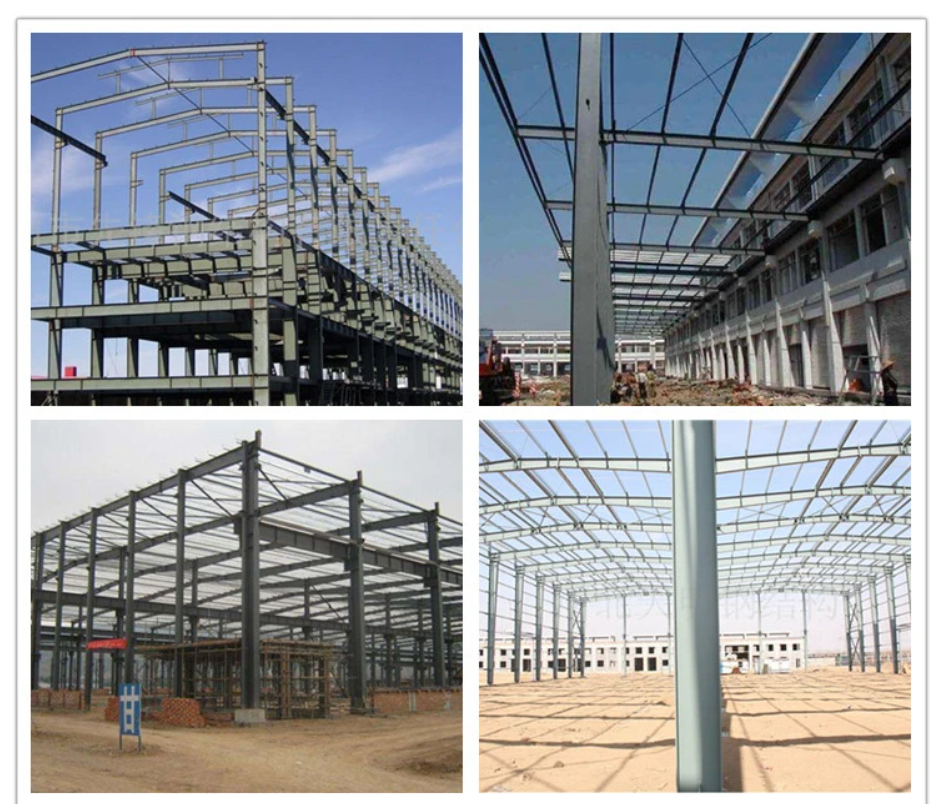

Application
H-beams are widely used and are mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activity and high temperature working conditions; large bearing capacity and high cross-section are required. Large bridges with good stability and large span; heavy equipment; highways; ship skeletons; mine support; foundation treatment and embankment engineering; various machine components.

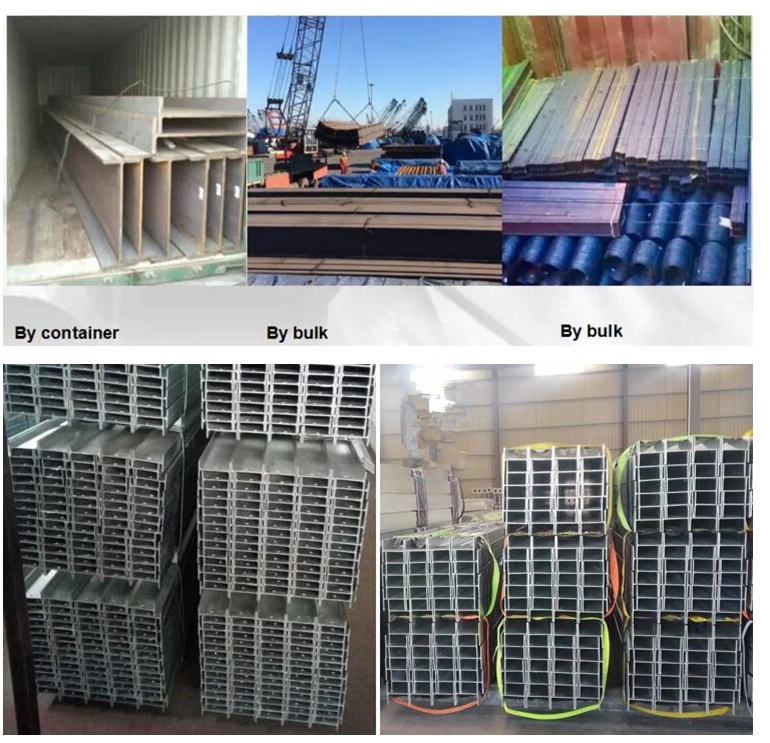

Packaging & Shipping
Our Advantages
1. High QUALITY RAW MATERIALS
Use high quality raw materials. The material is at the same level.
2. COMPLETE SPECIFICATIONS
Complete specifications,sufficient stock,one-stop procure-ment,products have everything.
3. ADVANCED TECHNOLOGY
Good quality+ex-factory price+fast response+reliable service,we strive to provide you.
Customer visit

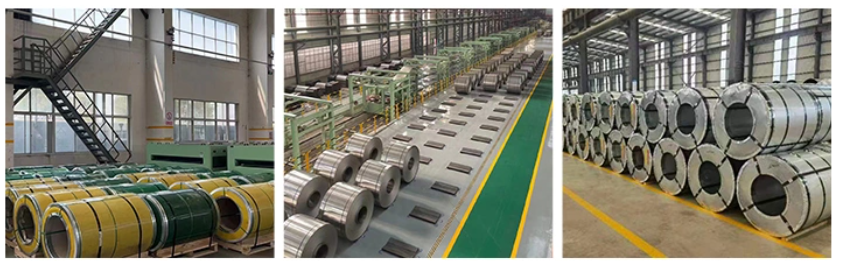

Factory exhibition
