| Quantity: | |
|---|---|
Product Paramenters
| Product Name | Stainless Steel Plating Tube |
| Material | Stainless Steel 201/ Stainless Steel 301 Stainless Steel 304/ Stainless Steel 316 |
| Type | Welded, Decorative |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Surface Treatment | Mirror:600G/800G Satin:180# 240# 320# Color:Gold/Rose Gold/Etc |
| Length | 5.8Meter 6.0Meter/ 6. 1Meter Or Custimized |
| Regular Shape | Round/ Square/ Retangle/ Oval |
| Slotted Pipe | Double slotted/ Single slotted |
| Torlerance | Outdiameter:+-0 2mm Thickness:+-003mm Length:+-10mm Weight OR Qty 15% |
| MOQ | 1Ton |
| Delivery Time | 7-25Days |
| Package | Fibre Bag/Film Coveri/Wooden Package |
| Payment Terms | 30% Deposit In Advance,Balance Before Loadingt T/T L/C At Sight/Western Union |
| Application | Railing,Window,Balcony,Curtain,Furniture,Etc |

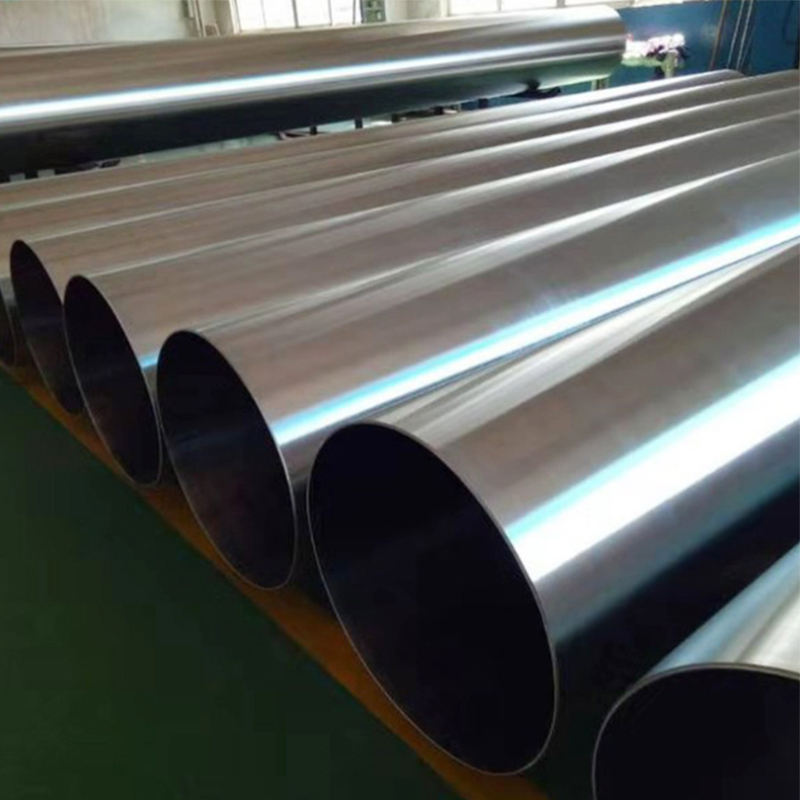

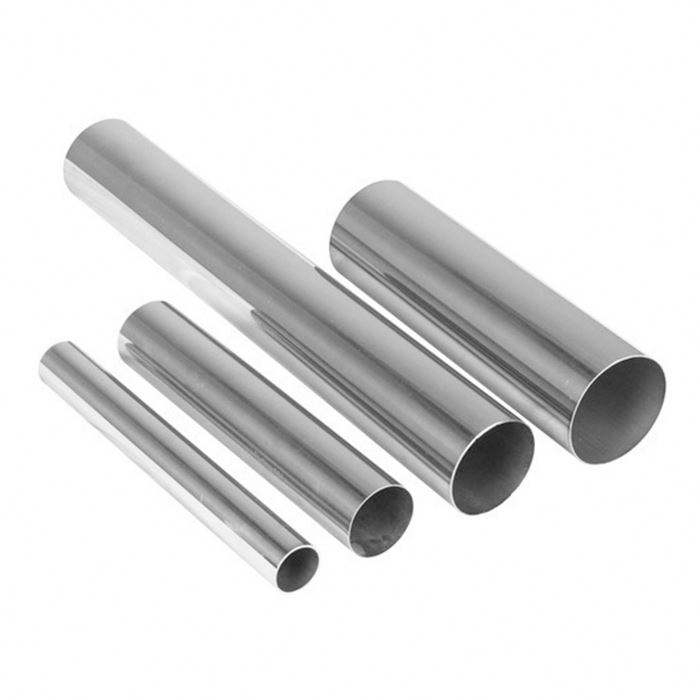

Product Display
Unmatched Precision: Our cold-drawn seamless tubes achieve dimensional tolerances 40% tighter than industry standards, eliminating costly secondary machining operations. The ±0.05mm OD consistency ensures perfect fit in high-pressure fittings and automated assembly systems.
Superior Surface Integrity: Each tube undergoes multi-stage polishing achieving mirror finishes down to Ra 0.4μm. This ultra-smooth surface minimizes fluid turbulence, reduces bacterial adhesion in medical applications, and prevents particle generation in semiconductor gas lines.
Advanced Metallurgical Control: Through vacuum degassing and electroslag refining, we maintain sulfur content below 0.005% and phosphorus below 0.025%. This exceptional purity prevents intergranular corrosion and extends service life in aggressive environments by up to 300%.
Flexible Customization: Beyond standard sizes, we offer:
Special alloys (duplex 2205, 904L, Inconel-clad)
Non-standard wall thicknesses (down to 0.05mm)
Complex geometries (oval, square, multi-bore)
Integrated end-forming (flaring, beading, threading)
Our production facility represents the pinnacle of tube manufacturing technology. The process begins with vacuum-induction melted billets, ensuring absolute material purity. These billets undergo rotary piercing at 1250°C in a controlled atmosphere furnace, followed by multi-pass cold drawing on precision mandrels. Each drawing stage reduces cross-section by 15-20% while work-hardening the material. Intermediate annealing in bright annealing furnaces with hydrogen atmosphere prevents oxidation and restores ductility. Final sizing occurs on computer-controlled tube reducing mills with laser micrometers providing real-time dimensional feedback. Surface treatment includes automated electrolytic polishing achieving sub-micron finishes, followed by ultrasonic cleaning in Class 1000 cleanrooms. Every tube undergoes 100% eddy current testing for defects and hydrostatic testing up to 10,000 psi.
Quality isn’t just inspected – it’s engineered into every millimeter of our precision tubes. Our ISO 9001:2015 certified quality management system governs every production stage. Material certification includes full traceability to melt source with 3.1 certificates per EN 10204. In-process controls include:
Chemical Analysis: OES spectrometry every 500kg
Dimensional Verification: Laser scanning at 0.001mm resolution
Mechanical Testing: Tensile, hardness, and flare tests per ASTM A370
Corrosion Resistance: Intergranular corrosion testing per ASTM A262 Practice E
Non-Destructive Testing: Eddy current, ultrasonic, and hydrostatic testing
Third-party inspections from TÜV, SGS, or Bureau Veritas are welcomed. Our defect rate remains below 0.001% through Six Sigma methodologies and automated optical inspection systems.
Our precision tubes serve critical functions across demanding industries:
Medical & Pharmaceutical
Hypodermic needles and catheter components
Bioreactor and fermenter tubing
Ultra-pure water and steam distribution
ISO 13485 compliant manufacturing
Semiconductor Manufacturing
High-purity gas delivery systems (UHP N₂, O₂, Ar)
Cooling lines for etch and deposition tools
Vacuum chamber components
Surface roughness <0.3μm for particle control
Automotive & Aerospace
Fuel injection lines (burst pressure >15,000 psi)
Hydraulic control systems
Sensor protection tubes
Weight reduction solutions (thin-wall designs)
Process Industries
Heat exchanger tubes (enhanced heat transfer surfaces)
Instrumentation impulse lines
Chromatography columns
High-pressure reactor components
We transform standard tubing into application-specific solutions through advanced processing:
End Forming: Precision flaring (37° JIC, 45° SAE), beading, and expansion
Bending: CNC mandrel bending (CLR down to 1.5D) with zero wall thinning
Welding: Orbital TIG welding for assemblies with purge control
Coating: Electroless nickel plating, PTFE lining, or ceramic coatings
Cleaning: Passivation per ASTM A967, electropolishing, and particle-free packaging
Marking: Laser etching for traceability and compliance marking
Q: What’s the minimum order quantity (MOQ) for custom tubes?
A: Standard MOQ is 500kg for custom sizes, but we accommodate prototype orders from 50kg with NRE charges. Volume discounts apply above 2,000kg.
Q: Can you provide tubes with specific surface roughness requirements?
A: Yes, we achieve Ra values from 0.2μm to 1.6μm through controlled polishing processes. Surface profiles are documented with profilometer reports.
Q: What packaging options prevent damage during shipping?
A: Tubes are packaged in hexagonal bundles with cardboard separators, plastic wrapping, and steel strapping. For critical applications, we offer individual tube packaging in PVC sleeves with desiccants.
Q: Do you provide material test reports?
A: Every shipment includes full 3.1 certificates per EN 10204 with chemical, mechanical, and dimensional data. Additional testing reports available upon request.
Q: What’s the typical lead time for custom orders?
A: Standard production lead time is 4-6 weeks. Expedited options available at 2-3 weeks with rush charges. Stock items ship within 48 hours.
