Seamless steel pipes
Product Paramenters
Production Range | Outer Diameter:10-120mm (0.4 inch - 4.7 inch) |
Wall Thickness:1-20mm (0.04 inch - 0.78 inch) | |
Material / Grade | Carbon Steel: GB/T 8162 & 8163 & 3639: 10#, 20#, 35#, 45#, 55#, Q235B, Q235C, CF53, A105 ASTM A519: 1010, 1020, 1026, 1035, 1045, 1050 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: C10/CK10, C22/CK22, C35/CK35, C45/CK45, CF53 JIS3441/JIS3444/JIS3445: STKM11A, STKM12A/STKM12B/STKM12C, STKM13A/STKM13B/STKM13C JIS G4051: S10C, S20C, S25C, S35C, S45C, S55C |
Alloy Steel: GB/T 8162 & 8163 & 3639: 16Mn(Q345B), 20Cr, 40Cr, 15CrMo, 20CrMo, 28CrMo, 30CrMo, 35CrMo, 42CrMo, 20CrMnTi, 40MnMoV, 20Mn2, ZF6, 16MnCr5, 20MnCr5, 38Mn2V, 09CrCuSb(ND) ASTM A519: 5120, 5140, 4130, 4135, 4140 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: ST52, EN10084-1998 20Cr4, 41Cr4, 15CrMo4, 25CrMo4, 35CrMo4, 42CrMo4, 16MnCr5 JIS3441/JIS3444/JIS3445: SCM432/SCRRM3, SCM4 JIS G4053: JIS SCr420, JIS SCr440, SCM415, SCM420 | |
Tolerance | Tolerance ±0.15mm,Superior products ±0.05mm, Can be customized according to customer's requirements |
Technique | Cold Drawn / Cold Rolled |
Shape | Round |
Further Processing for Steel Tubes | Final Annealing, Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking |

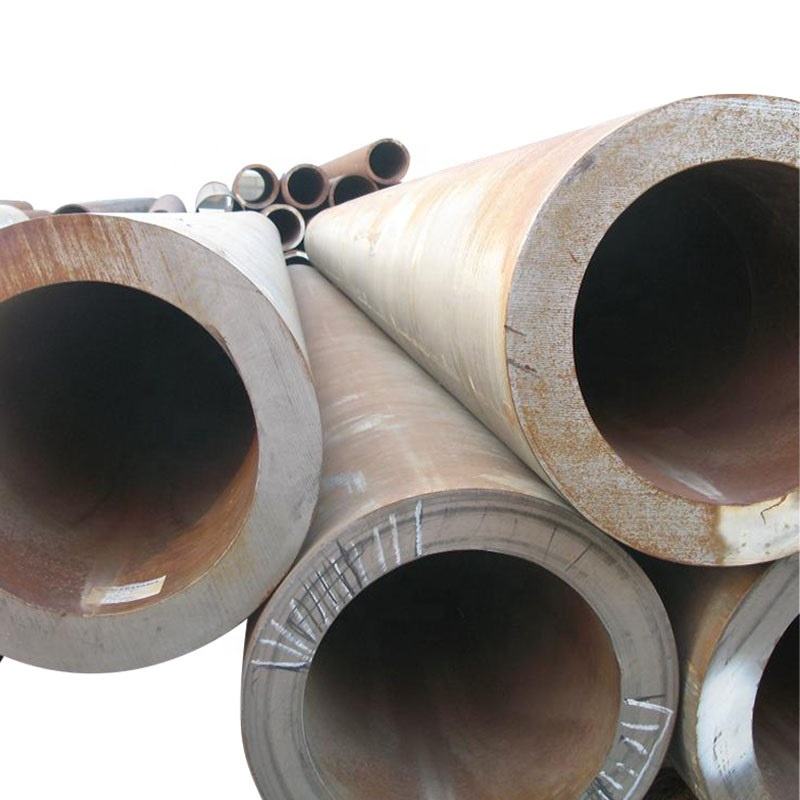

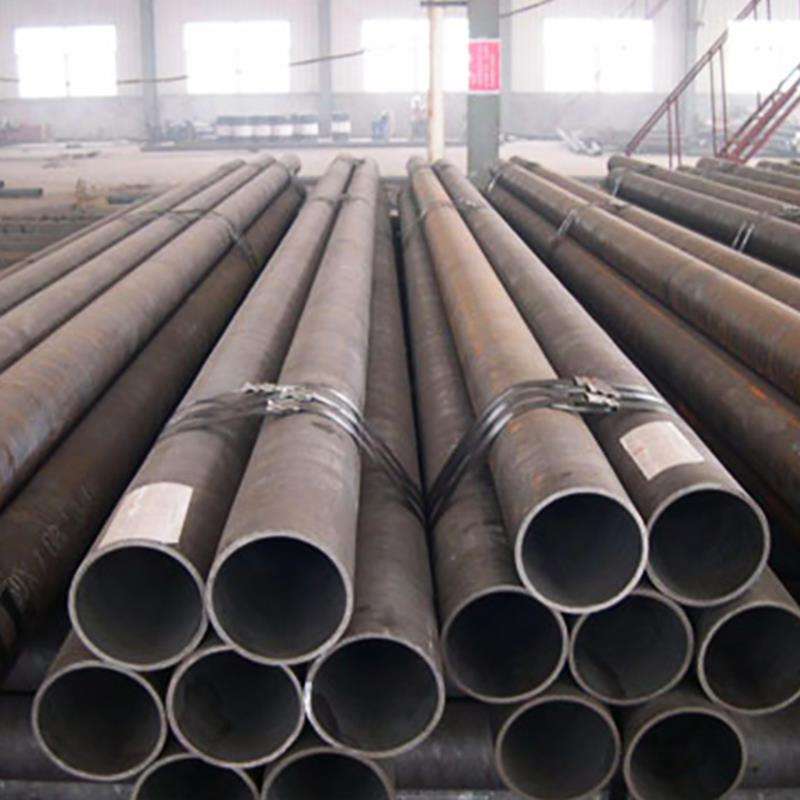

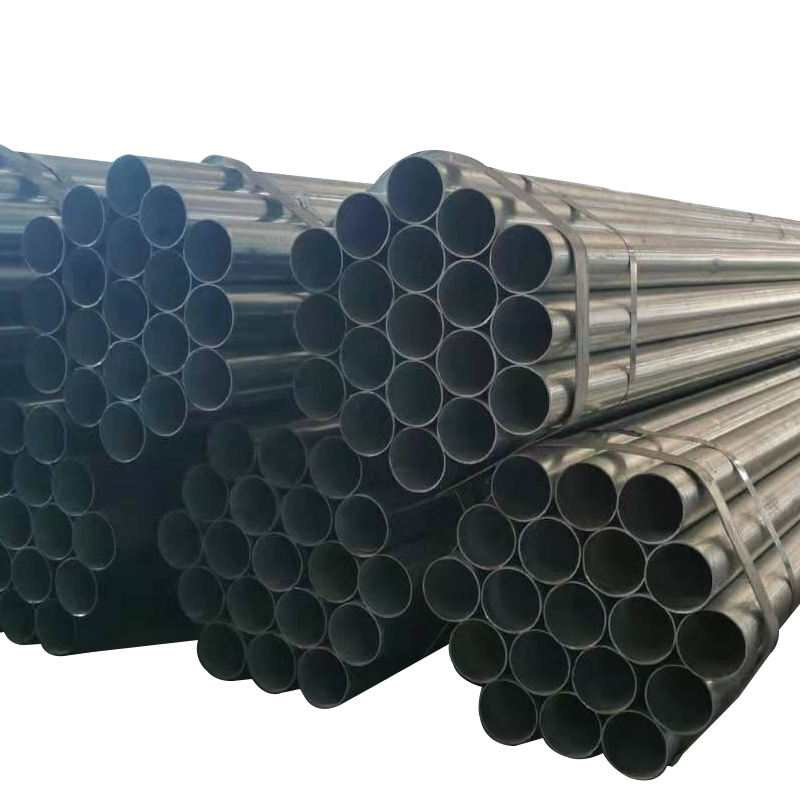

Product Display
Product Advantage

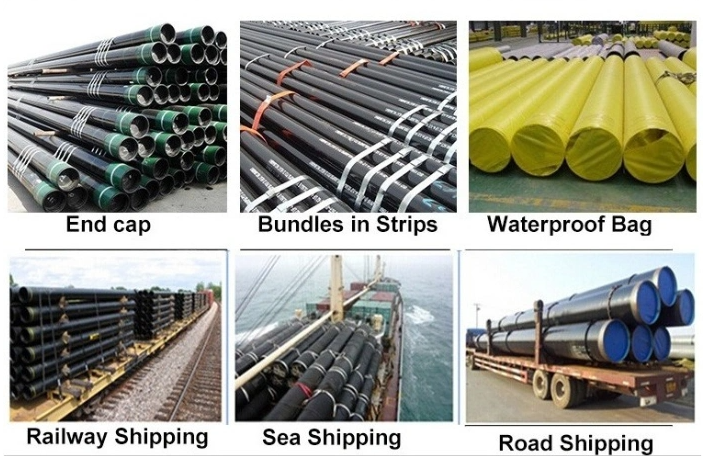

Packaging & Shipping
Shipping--- by container (Apply to a few or common quantity) or in bulk ( Apply to huge quantity)
Container sizes:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
For 20feet container load 25tons-28tons pipes whose max. length is 5.8m.
For40feet container load 25tons-26tons pipes whose max. length is 12m.
Certifications
FAQ
1.Are you a manufacturer?
Yes, we are manufacturer.
2.Where is your Factory?
In Liaocheng City.
3.Do you have Certificates?
Yes, we have ISO and API Certificates.
4.What is your annual output?
400,000 metric ton per year.
5.What is your capacity of dimension?
OD 12-610MM, WT 2-100MM
6.What is your delivery time?
5-30 days, according to stock or new production.
7.What is your Material?
Carbon and alloy steel pipe, Gr.b, 20#, CK45, ST52, AISI4140, 40Cr, 42Crmo etc.
8.What is your standard?
ISO, API, ASTM, JIS, DIN GB etc.
9.Can I get samples before purchase?
Of course, we will provide you with the sample, and you need to pay for the freight.
