Hot dip galvanized pipe
Hot dip galvanized pipe is made of molten metal and iron matrix reaction to produce alloy layer, so that the matrix and the coating of the two combination. Hot dip galvanizing is to first pickling the steel pipe. In order to remove the iron oxide on the surface of the steel pipe, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or mixed aqueous solution of ammonium chloride and zinc chloride, and then sent into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between the matrix of hot-dip galvanized steel pipe and the molten bath to form a compact zinc-iron alloy layer with corrosion resistance. The alloy layer is integrated with the pure zinc layer and the steel tube matrix, so its corrosion resistance is strong.
Product Paramenters
| Product Name | Pre galvanized steel pipe round price | |||
| Out Diameter | Pre galvanized:1/2''-4''(21.3-114.3mm). Such as 38.1mm, 42.3mm, 48.3mm, 48.6mm or as customer request. | |||
| Thickness | Pre galvanized:0.6-2.5mm. | |||
| Zinc coating | Pre galvanized：8μm-25μm | |||
| Type | Electronic Resistance Welded (ERW) | |||
| Steel Grade | Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D | |||
| Standard | BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004 | |||
| Surface Finish | Pre-galvanized, Hot dipped galvanized, Electro galvanized, Black, Painted, Threaded, Engraved, Socket. | |||
| International Standard | ISO 9000-2001, CE CERTIFICATE, BV CERTIFICATE | |||
| Packing | 1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers | |||
| Main Market | Middle East,Africa, Asia and some Uropean country and South America, Australia | |||
| Country of origin | China | |||
| Productivity | 5000Tons per month. | |||
| Remark | 1. Payment terms : T/T ,L/C 2. Terms of trade : FOB ,CFR,CIF ,DDP,EXW 3. Minimum order : 2 tons 4. Delivery time : Within 25 days. | |||

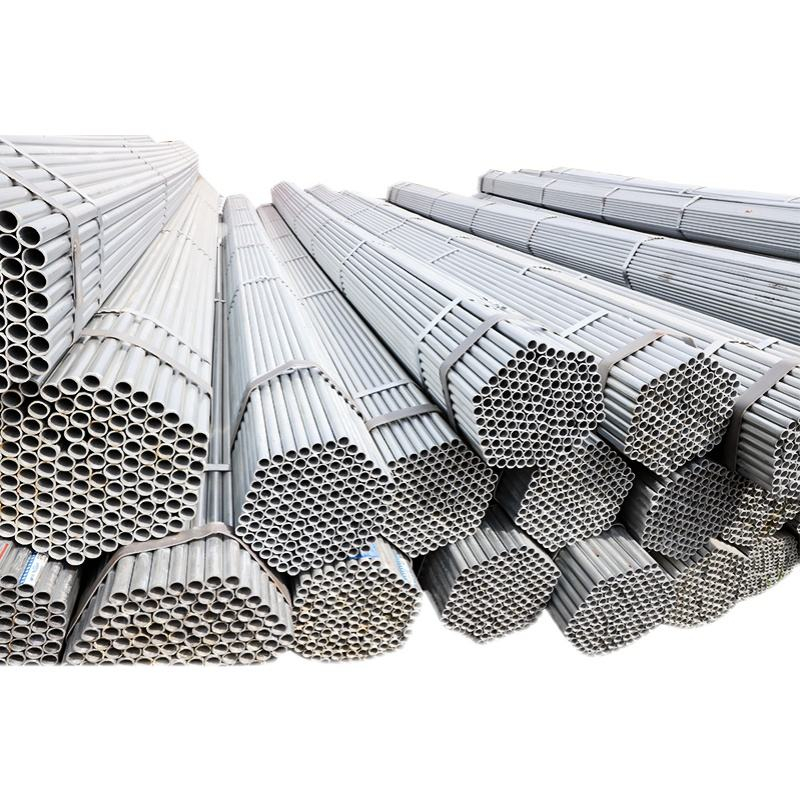

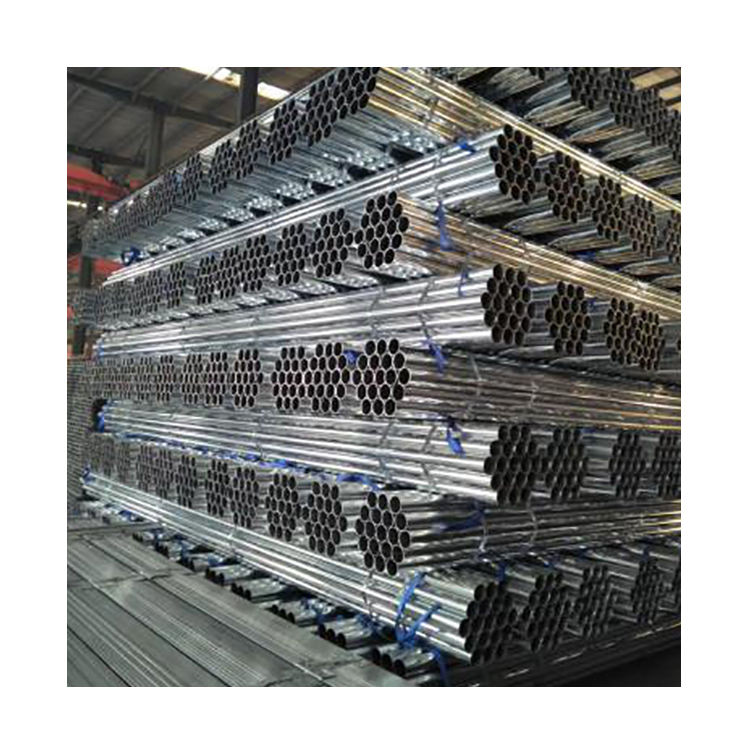

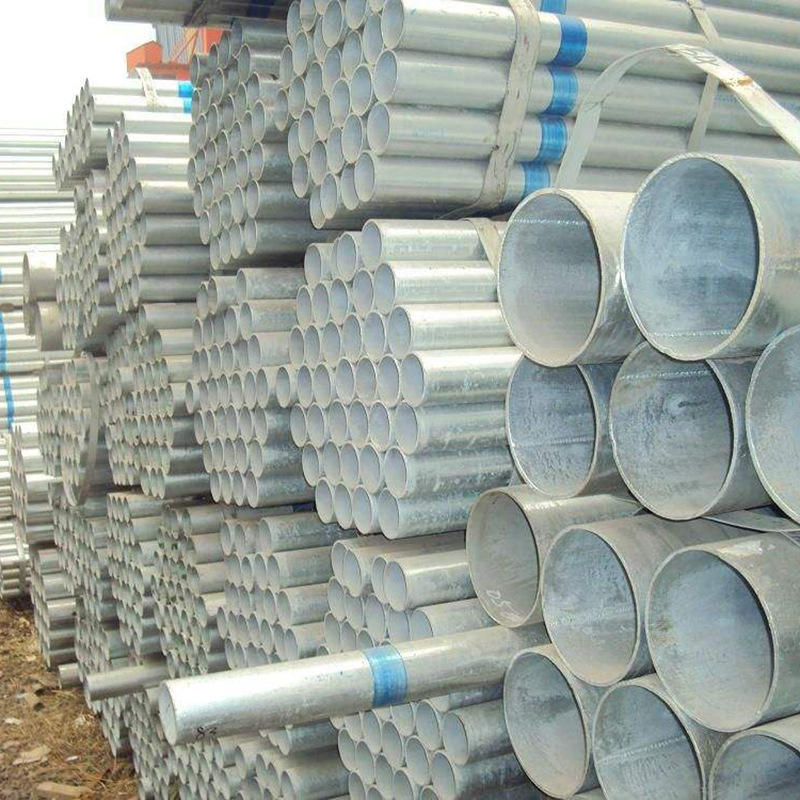

Product Display
Application
Packaging & Shipping
Our Advantages
Company Profile
Shandong Jiajiena Metal Products Co., Ltd. is a comprehensive steel enterprise integrating warehousing, processing, trading and distribution. It has its own processing plant, which can process a series of surface processing, cutting processing, forming, rolling, sandblasting and so on.The company's main products are stainless steel, carbon steel, galvanized products and other coils, plates, and profiles! There is a stock of 20,000 tons of flat panels of various specifications. Own storage and processing 45,000 square meters. It has more than ten processing equipments such as cold-rolled slitting, decoiling proces and surface processing, with an annual processing capacity of 150,000 tons.
FAQ
Q1: How can we get the sample?
A1: Free samples are available for your checking and testing.But you need to pay for the frieght cost.
Q2: Can you provide Mill Test Certificate?
A2: Yes! The Mill Test Certificate will be issued with the product.
Q3:Packing details?
A3:Packaged 25 Tons per 20 GP wooden case container.
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
Q4:What is your terms of payment?
A4: 100% T/T advance.
30% T/T and balance against copy of documents.
30% T/T advance, balance L/C at sight.
Q5:Can we visit your factory?
A5: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
